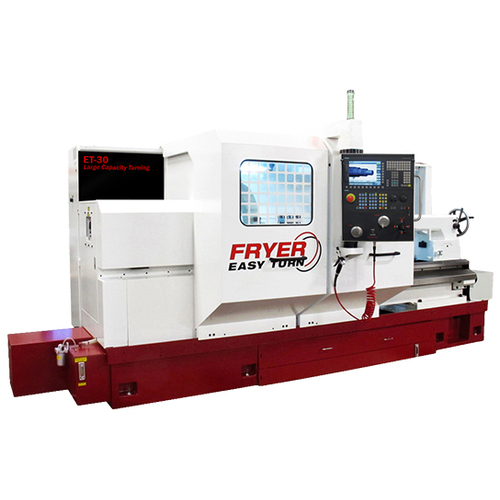

Easy Turn Toolroom Lathe - Model ET30-30″ Swing-60″ Between Centers-30 hp Motor
| Swing | 30.00″ | Spindle Nose | D1-11 |
| Distance Between Centers | 60.00″ | Bar Capacity | 4.10″ |
| Spindle Bore Diameter | 4.10″ | X-Axis Travel | 16.00″ |
| Horsepower | 30.0 hp | Z-Axis Travel | 57.00″ |
| Type | Combination Tool Room | Rapid Traverse | 400 IPM (X-Axis), 400 IPM (Z-Axis) |
| Center Taper | 6MT | Weight | 13,500 lbs |
| Headstock Taper Size | 60.00″ |
Product Features
| Remarks | •CNC Operation:Simple menu system ? no codes of any kind •Automatic turning, facing, drilling, and threading cycles •Conversational or G code programming •3D solid model graphic verification •Reads standard G & M codes from CAD-CAM systems •Read DXF files from AutoCAD. •Manual Operation: Manual handles for x and Z axis •Full digital readout for manual positioning •Manual power feed with joystick control •Electronic stops for convenient positioning •?Do One? function for threading, thread repair, chamfers, radius, and roughing •Automatic teach mode, remembers manual moves for automatic machining of additional parts. •Construction Features: Rugged certified FC–30 Meehanite casting •Hardened and ground way surfaces with Turcite B •Precision ground double nut ballscrews •Large Spindle Bores: 6?, 9? and 12? •Spindle Bores Available on the Large Capacity Lathes | Country of Origin | USA |
Shipping Info
LocalField10
Commercial Truck - Call for Shipping Charges
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
13500
