| Swing | 21.00″ | Spindle Nose | D1-8 |
| Distance Between Centers | 60.00″ | Bar Capacity | 3.15″ |
| Spindle Bore Diameter | 3.15″ | X-Axis Travel | 12.00″ |
| Horsepower | 15.0 hp | Z-Axis Travel | 57.00″ |
| Type | Combination Tool Room | Rapid Traverse | 400 IPM (X-Axis), 400 IPM (Z-Axis) |
| Center Taper | 4MT | Weight | 7,500 lbs |
| Headstock Taper Size | 60.00″ |
Product Features

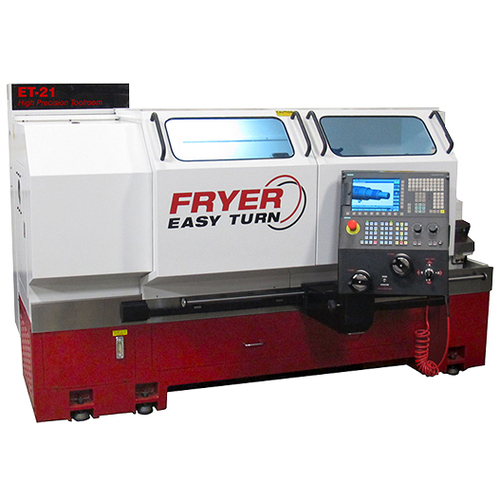

| Remarks | •Designed by toolmakers for toolmakers, the Fryer Easy Turn Series provides rugged construction and high accuracy in a compact toolroom lathe •The Easy Turn is easier to use than a conventional lathe, yet offers the productivity of a CNC •Time consuming manual set-ups for threading, chamfers, and contours are eliminated by the Easy Turn?s handle driven ?Do One? cycles and electronic stops. •Available Option Include: 8 Station Bi-Directional Turret •4 Position Electronic Toolpost •Live Tooling •C Axis •Chip Conveyor •Hydraulic chucks •High Speed Networking •Single Phase Power •Capacity Swing Over Bed 21″ •Swing Over Cross Slide 12″ •Center Height 11″ •Distance Between Centers 60″ •Optional Centers 40″ Spindle • Spindle Nose D1–8D1–8 3.15″ •Optional Spindle Bore NA •Tailstock Quill Travel 5.5″ •Quill Diameter 2.5″ •Performance Motor 15 HP •Positioning Accuracy +/-" 0.0002 •Rapid Traverse (X, Z) 400 IPM •Anti Thrust (Peak) 3,058 lbs •X,–3,504 lbs •General Information Machine Weight 7,500 lbs. | Country of Origin | USA |
Shipping Info
LocalField10
Commercial Truck - Call for Shipping Charges
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
7500.0000
