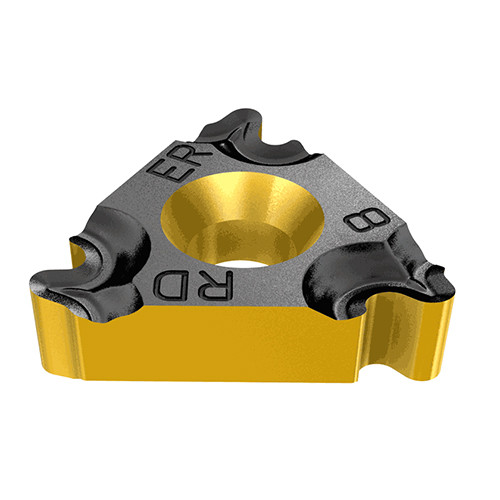

16IR 6 RND IC908
Internal round laydown threading inserts, for firefighting and food industry, pipe couplings (DIN 405 API spec 5B-8-1996).
| Thread Standard | THFT | | Application | | Internal Threading lay down | |

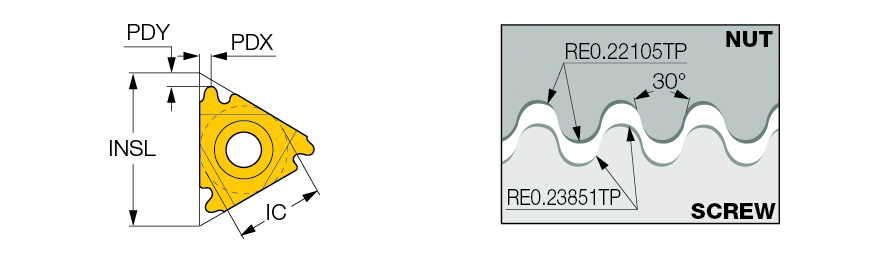

| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.649″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 6 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.037″ | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | RN30 |
| Cutting Position | Internal | Profile Distance EY (PDY) | 0.059″ |
Product Features
| Family Description | Internal round laydown threading inserts, for firefighting and food industry, pipe couplings (DIN 405 API spec 5B-8-1996). | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info Tolerance: Class 7H |
Shipping Info
Package Weight
0.015
