06IL A 55 IC228

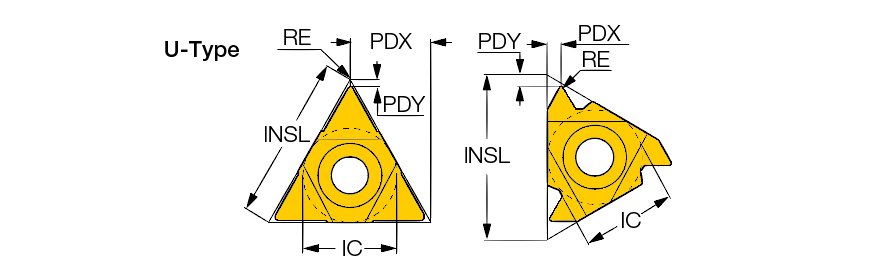

Laydown Threading Insert ; 60 Triangle Shape ; 0.271″ Length ; 0.157″ IC ; THFT | ; Carbide ; IC228 ; TiCN+TiN
| Thread Standard | THFT | | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 0.157″ | Shape | 60° Triangle |
| Insert Length (INSL) | 0.271″ | Threads per Inch Minimum (TPIN) | 20 |
| Corner Radius (RE) | 0.0029″ | Threads per Inch Maximum (TPIX) | 48 |
| Grade | IC228 | Tool Type | Threading Regular Inserts |
| Coating | TiCN+TiN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | Internal | Thread Form Type (THFT) | VP55 |
| Application | | Internal Thread Milling | Internal Threading lay down | | Profile Distance EY (PDY) | 0.0216″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Internal 55° partial profile, laydown threading inserts. IR/L - Ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - With a chipformer. Application: general applications | Country of Origin | Israel |
| Remarks | For insert identification system, click on More Info. For threading between walls use GRIP-type inserts TIP-WT, GEPI-WT, TIPI-WT. |
