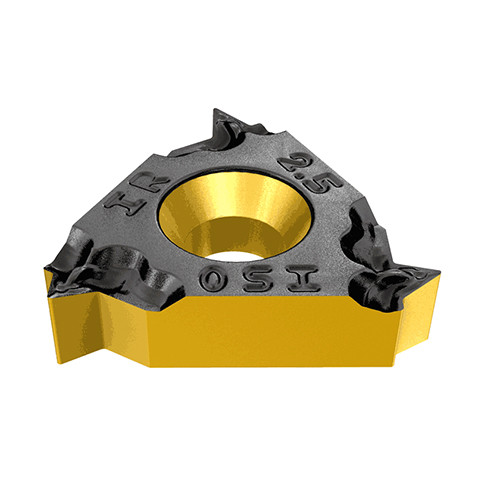

16IL 1.25 ISO IC908
Internal, ISO metric (DIN13 12-1986 class 6H) laydown threading inserts. IR/L - ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - with a chipformer. Application: general industry.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

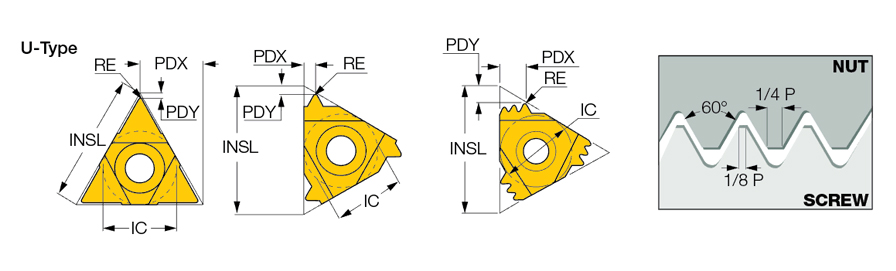

| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.649″ | Shape | 60° Triangle |
| Thread Pitch (TP) | 1.25 mm | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0035″ | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | M60 |
| Cutting Position | Internal | Profile Distance EY (PDY) | 0.0315″ |
| Application | | Internal Thread Milling | Internal Threading lay down | |
Product Features
| Family Description | Internal, ISO metric (DIN13 12-1986 class 6H) laydown threading inserts. IR/L - ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - with a chipformer. Application: general industry. | Country of Origin | Israel |

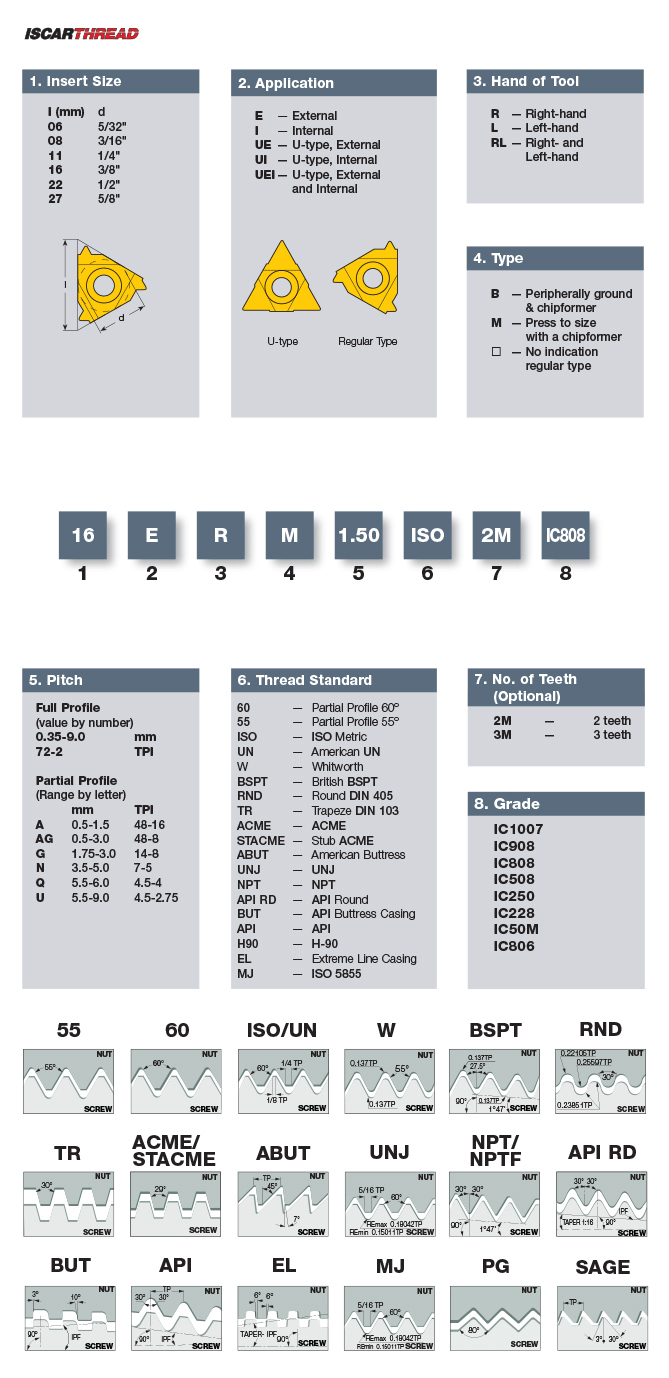

| Remarks | For Insert Identification System, click on More Info Tolerance: Class 6H |
Shipping Info
Package Weight
0.013
