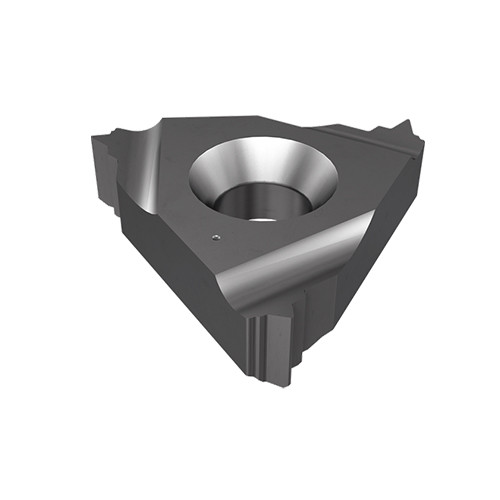

11IR 1.00 MJ IC806
Internal MJ ISO 5855 metric full profile laydown threading inserts, for the aviation and aerospace industries
| Thread Standard | THFT | | Applicable Material | | Super-Alloys / Titanium | |

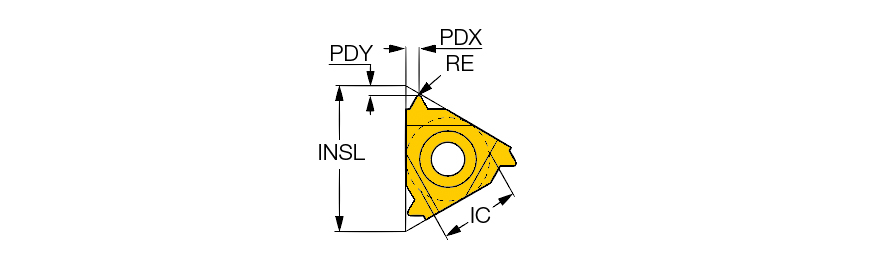

| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.433″ | Shape | 60° Triangle |
| Thread Pitch (TP) | 1 mm | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.002″ | Tool Type | Threading Regular Inserts |
| Grade | IC806 | Measurement Type | Inch |
| Coating | AlTiN "SUMO TEC" | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | MJ60 |
| Cutting Position | Internal | Profile Distance EY (PDY) | 0.0236″ |
| Application | | Internal Threading lay down | |
Product Features
| Family Description | Internal MJ ISO 5855 metric full profile laydown threading inserts, for the aviation and aerospace industries | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info |
Shipping Info
Package Weight
0.006
