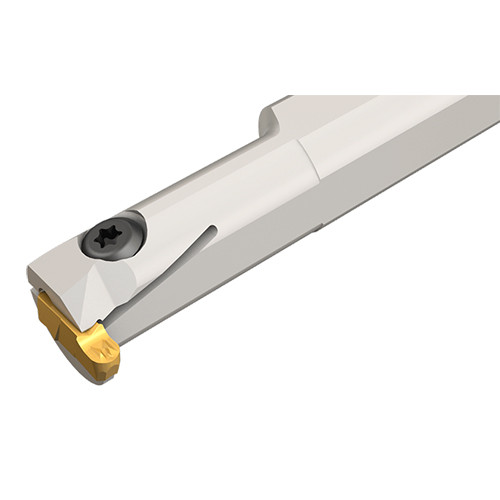

GHIR 32-4

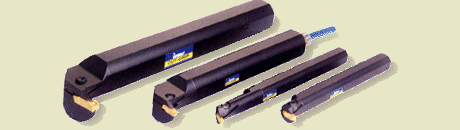

Internal grooving and turning bars.

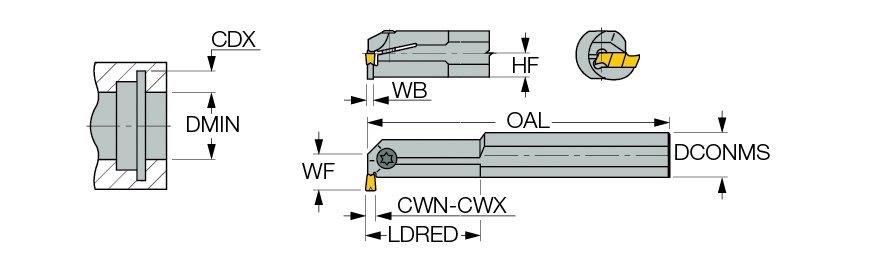

| Cutting Width Minimum (CWN) | 2.5 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Width Maximum (CWX) | 4 mm | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 5 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Minimum Bore Diameter (DMIN) | 38 mm | Body Material | Steel |
| Functional Width (WF) | 21.3 mm | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 250 mm | Measurement Type | Metric |
Product Features
| Family Description | Internal grooving and turning bars. | Country of Origin | Israel |
| Remarks | When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. |
Shipping Info
Package Weight
3.331
