GHGR 32-632
External holders for deep grooving and parting

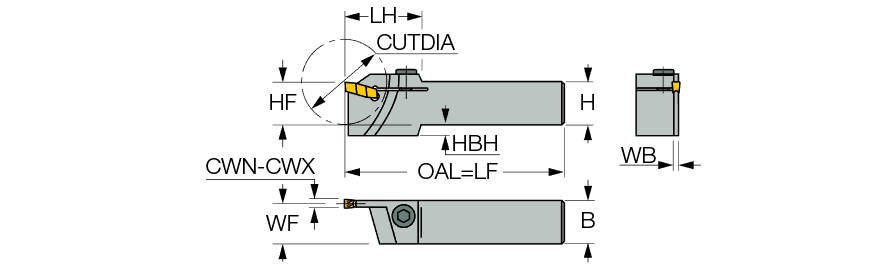

| Cutting Width Minimum (CWN) | 6 mm | Overall Length (OAL) | 170 mm |
| Cutting Width Maximum (CWX) | 8 mm | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 32 mm | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 32 mm | Body Material | Steel |
| Shank Width (B) | 32 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 29.4 mm | Measurement Type | Metric |
| Head Length (LH) | 50 mm |
Product Features
| Family Description | External holders for deep grooving and parting | Country of Origin | Israel |
| Remarks | For machining depth over 13 mm, a single-ended insert is required (GIM, GIMF,GIMY,GIMT,GIMN) CDX for grooving depth depends on part diameter Dmax For grooving a part with a diameter larger than CUTDIA, click on More Info For using TIP and GIVR/L inserts, tool holder seat needs to be modified according to insert profile to ensure clearance For key blades and adjustable torque handles information (optional), click on More Info |
Shipping Info
Package Weight
2.681
