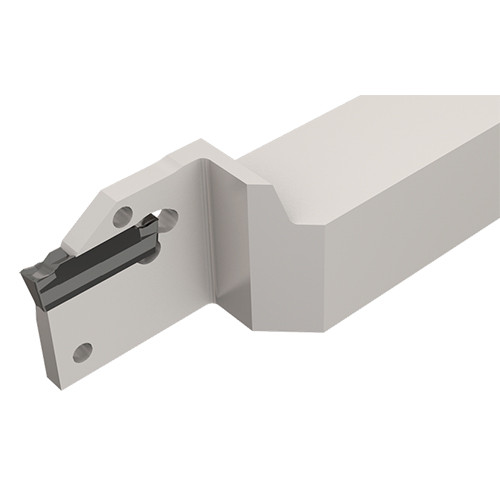

DGTR 25.4-4
Grooving Toolholder ; 6″ OAL ; 1″ Shank Height ; 1″ Shank Width ; 0.157″ CW Min. ; 0.157″ CW Max. ; Steel

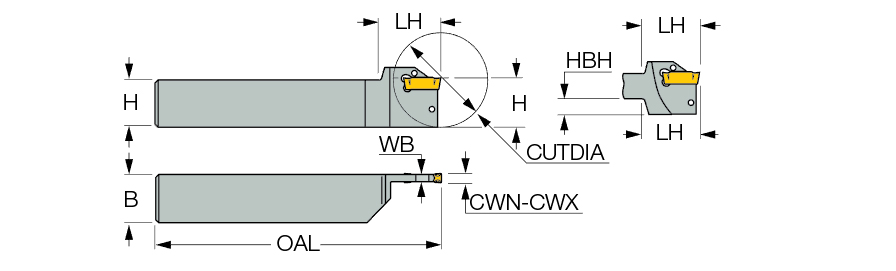

| Cutting Width Minimum (CWN) | 0.157″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.157″ | Application | | Ext. Grooving | Parting | |
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Parting & Grooving Tools |
| Head Length (LH) | 1.2″ | Measurement Type | Inch |
| Overall Length (OAL) | 6″ |
Product Features
| Family Description | Integral shank parting and grooving tools | Country of Origin | Israel |
| Remarks | Insert limit is Tmax=.709. If deeper penetration is required, the insert should be modified into single-ended by the user DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified-click on More Info |
Shipping Info
Additional Fees and Notes
0
Package Length
6.00000
Package Width
1.00000
Package Height
1.00000
Package Weight
1.462
