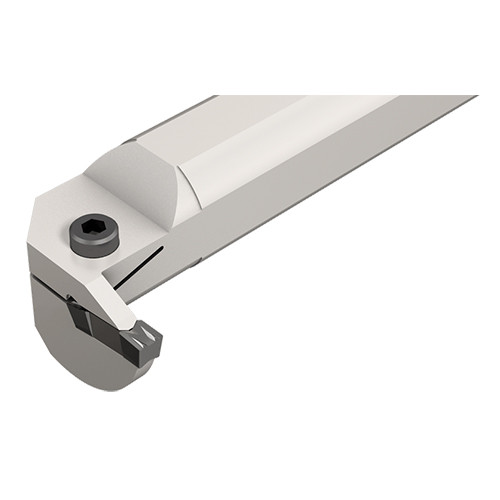

GHIR 40-820
Internal grooving and turning boring bars

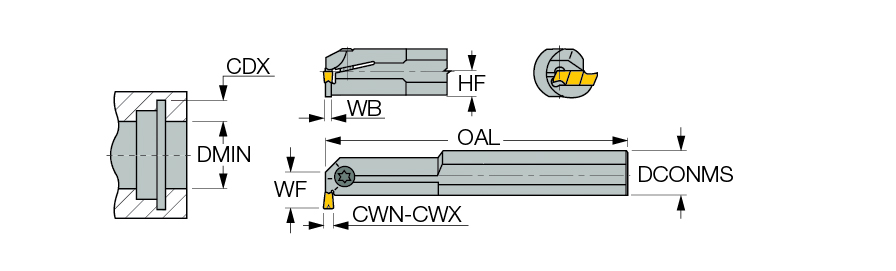

| Cutting Width Minimum (CWN) | 7 mm | Connection Diameter Machine Side (DCONMS) | 40 mm |
| Cutting Width Maximum (CWX) | 8.3 mm | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 20 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Minimum Bore Diameter (DMIN) | 65 mm | Body Material | Steel |
| Functional Width (WF) | 41 mm | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 300 mm | Measurement Type | Metric |
Product Features
| Family Description | Internal grooving and turning boring bars | Country of Origin | Israel |
Shipping Info
Package Weight
6.268
