S6 SWUBL-065

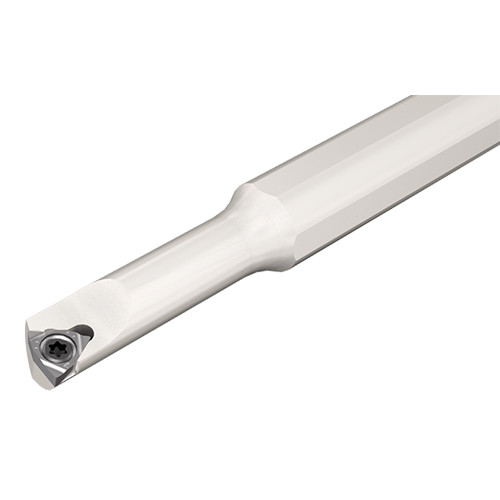

Screw clamp miniature boring bars carrying small WBMT trigon inserts. S - Steel shank; E - Carbide shank with coolant hole.

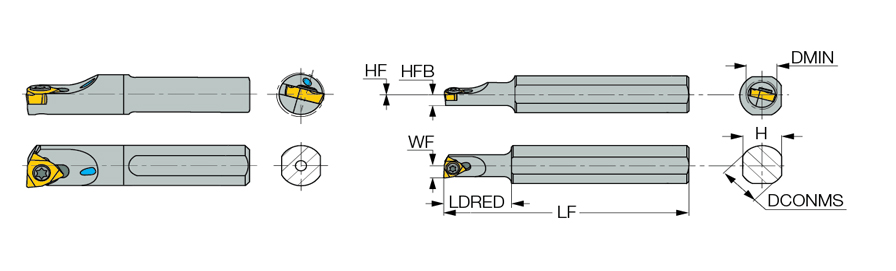

| Connection Diameter Machine Side (DCONMS) | 3/8″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 4″ | Application | | Int. 80° Trigon 93° Approach | |
| Reduced Body Diameter Length (LDRED) | 0.781″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.354″ | Rake Angle Radial (GAMF) | -15 Degrees |
| Functional Width (WF) | 0.12″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WBMT 52.004R | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.236″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Screw clamp miniature boring bars carrying small WBMT trigon inserts. S - Steel shank; E - Carbide shank with coolant hole. | Country of Origin | Israel |
Shipping Info
Package Weight
0.134
