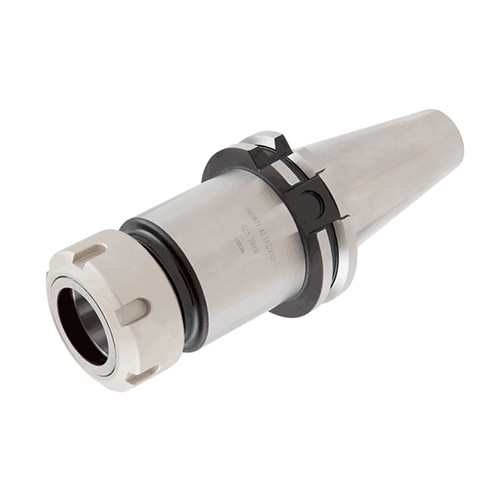

DIN69871 50 ER20X160
Collet Chuck ; 50 Shank Size ; ER20 Connection Size ; 34 mm Body Dia. ; 1 mm Min. Capacity ; 13 mm Max. Capacity

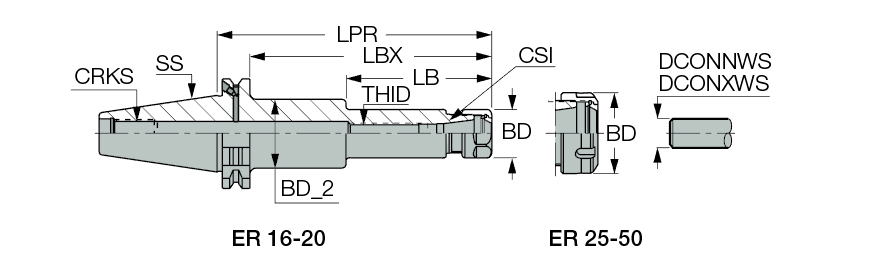

| Shank Size (SS) | 50 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Connection Size (CSI) | ER20 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Body Diameter (BD) | 34 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 160 mm | Body Material | Steel |
| Tool Type | DIN 69871 | Connection Code Machine Side (CCMS) | DIN69871 |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | DIN 6499 ER collet chucks with a DIN 69871 form ADB taper shanks. | Country of Origin | Italy |
| Remarks | B is the designation for coolant through flange. |
Shipping Info
Additional Fees and Notes
0
Package Weight
8.225
