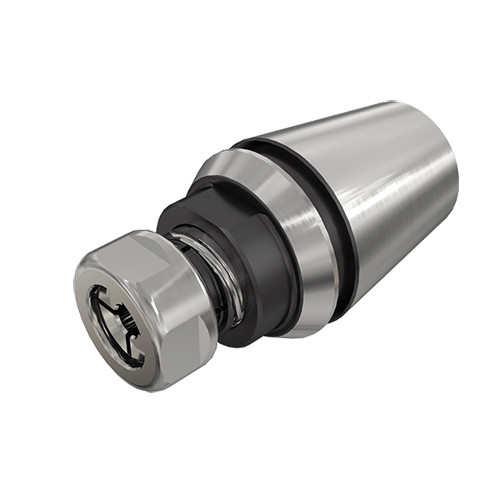

GTIN ER32 DIN 12.00X9.00

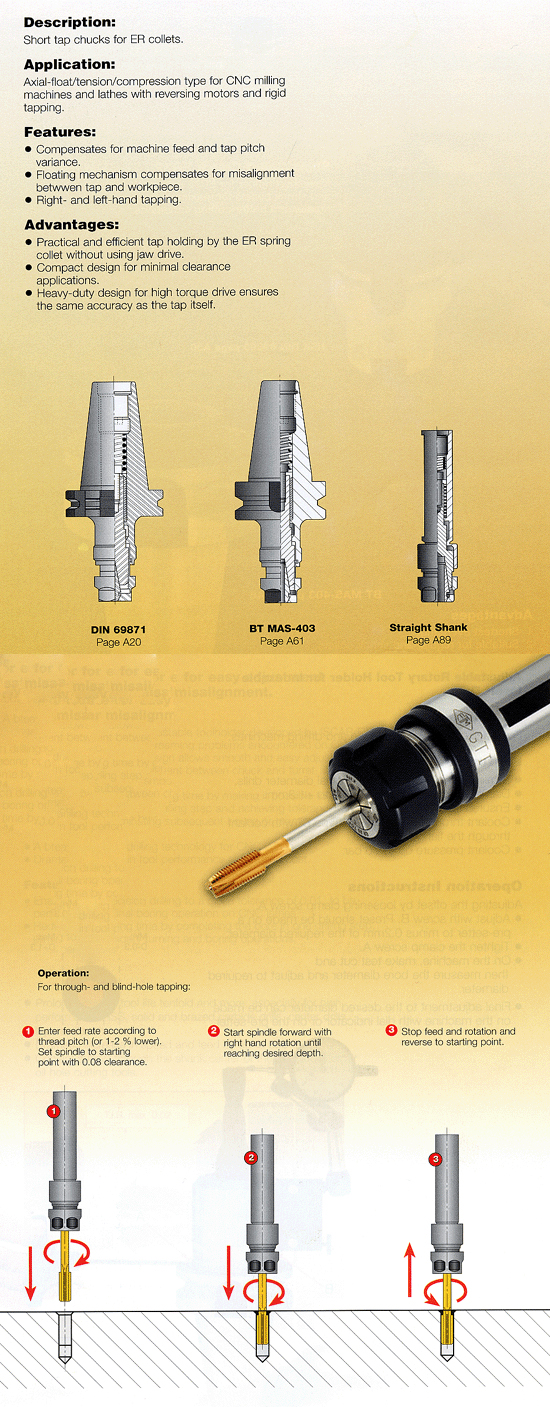

ER collet tapping attachments, tension and compression DIN type used for CNC milling and turret lathe machines. A compact design with a misalignment compensating mechanism.

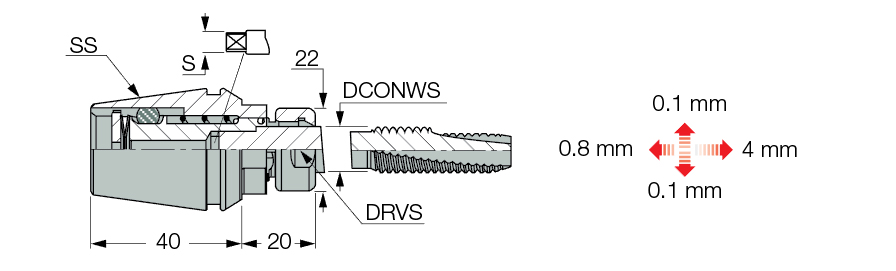

| Shank Size (SS) | ER32 | Connection Diameter Workpiece Side (DCONWS) | 12 mm |
| Connection Diameter Machine Side (DCONMS) | 0 mm | Drive Size (DRVS) | 20 mm |
| Tool Type | Accessories and Devices | Body Material | Steel |
| Measurement Type | Metric | Inner Diameter | 12mm |
Product Features
| Family Description | ER collet tapping attachments, tension and compression DIN type used for CNC milling and turret lathe machines. A compact design with a misalignment compensating mechanism. | Country of Origin | Israel |
| Remarks | No coolant should be induced through the tapping collet as it will cause malfunction of the mechanism Compensates for machine feed and tap pitch variance Floating mechanism compensates for misalignment between tap and workpiece Hard start for rigid tapping When a rigid ER collet is assembled in an ER holder, the actual protruding length of the holder becomes shorter by 2.0 mm for ER20 and by 3.0 mm for ER25/ER32 |
Shipping Info
Package Weight
0.463
