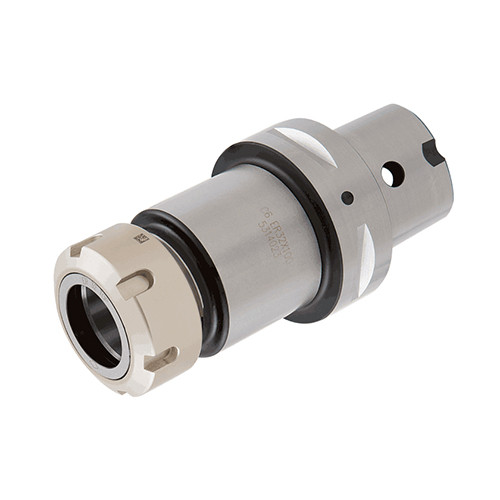

C5 ER25X100
Collet Chuck ; 50 Shank Size ; ER25 Connection Size ; 1.654″ Body Dia. ; 1.968″ Shank Dia. ; 0.039″ Min. Capacity ; 0.63″ Max. Capacity

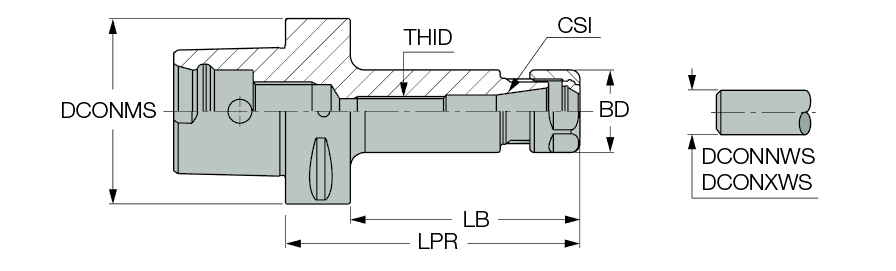

| Shank Size (SS) | 50 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER25 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.039″ |
| Body Diameter (BD) | 1.654″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.63″ |
| Protruding Length (LPR) | 3.937″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Body Material | Steel |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
Product Features
| Family Description | DIN 6499 ER collet chucks with CAMFIX (ISO 26623-1) exchangeable tapered shanks. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
2.436
