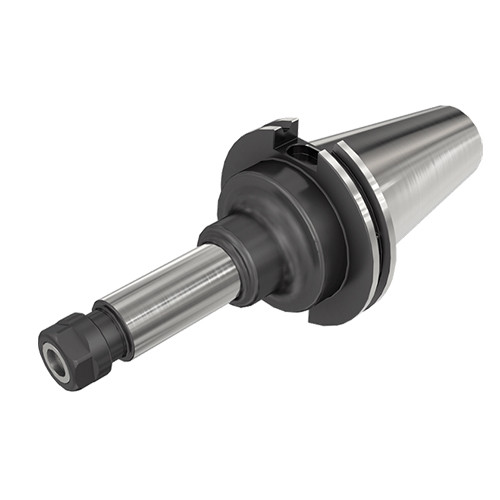

CAT50 ER20X8.000
DIN 6499 ER collet chucks with Caterpillar form ADB tapered shanks

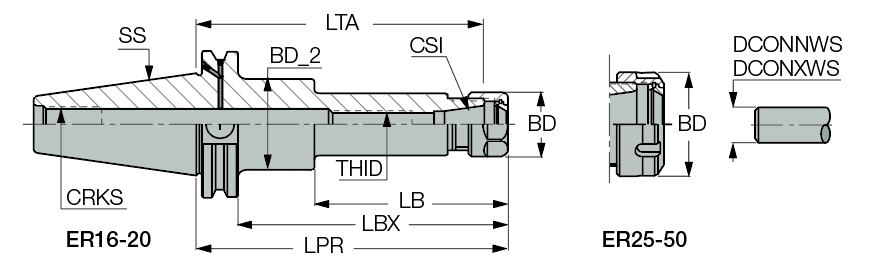

| Shank Size (SS) | 50 | Coolant Supply Property (CSP) | External |
| Connection Size (CSI) | ER20 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.041″ |
| Body Diameter (BD) | 1.339″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.514″ |
| Protruding Length (LPR) | 8″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 50″ | Body Material | Steel |
| Tool Type | DIN 69871 | Connection Code Machine Side (CCMS) | CAT |
| Style | ER20 |
Product Features
| Family Description | DIN 6499 ER collet chucks with Caterpillar form ADB tapered shanks | Country of Origin | Turkey |
| Remarks | B is the designation for coolant through flange. |
Shipping Info
LocalField10
0
Package Weight
9.746
