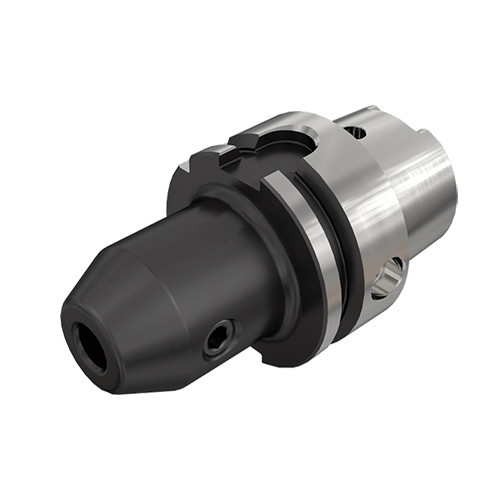

HSK A63 EM3/8X2.562
DIN6359 side clamp holders for Weldon shanks with HSK DIN69893 form A tapered shanks.

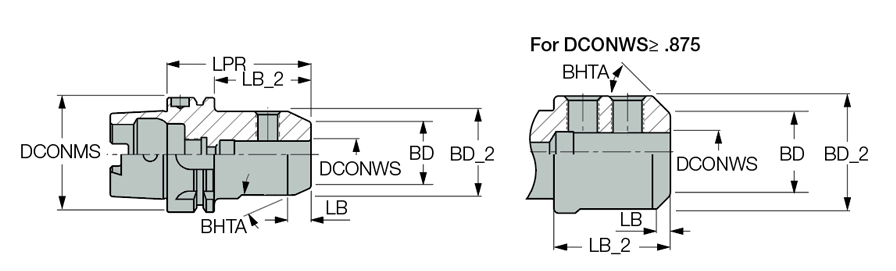

| Connection Size (CSI) | R8 | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 3/8″ | Shank Size (SS) | 63 |
| Body Diameter (BD) | 0.787″ | Tool Type | HSK |
| Protruding Length (LPR) | 2.562″ | Body Material | Steel |
| Overall Length (OAL) | 3.822″ | Connection Code Machine Side (CCMS) | HSK |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | DIN6359 side clamp holders for Weldon shanks with HSK DIN69893 form A tapered shanks. | Country of Origin | Italy |

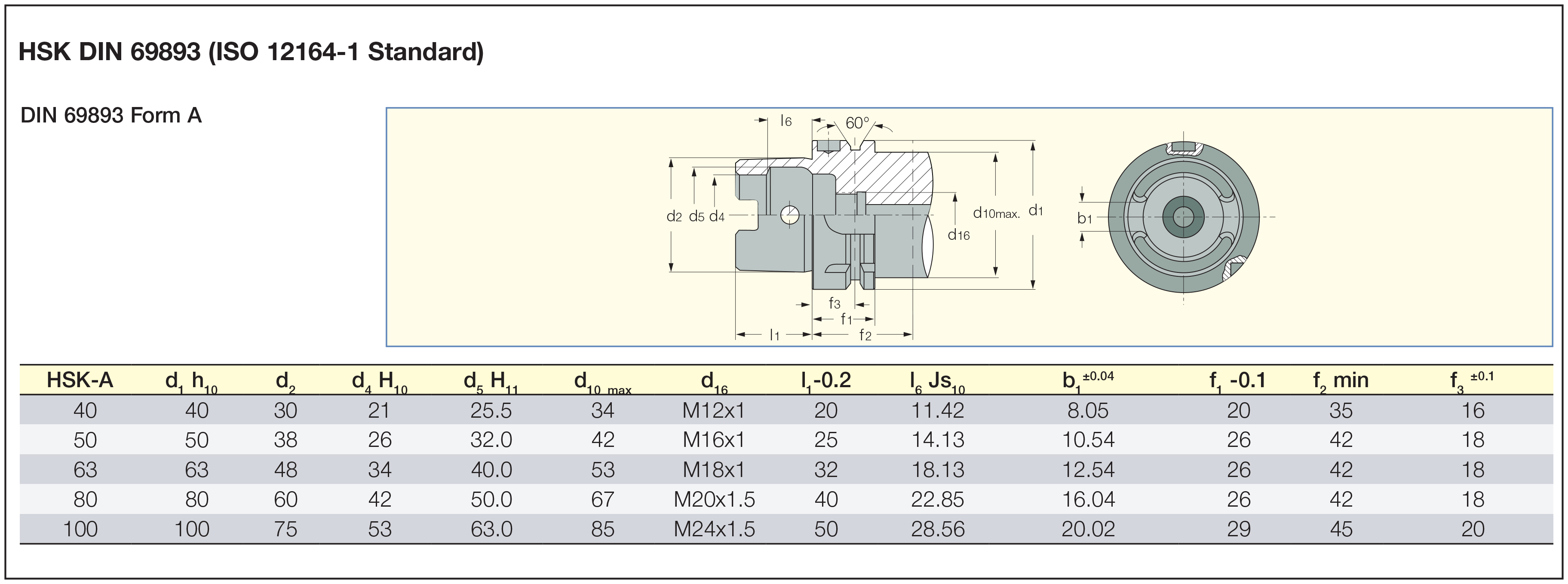

| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, see More info. |
Shipping Info
Package Weight
2.004
