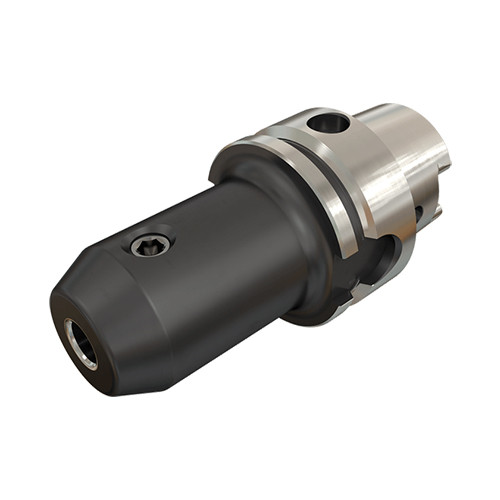

HSK A63 EM16X100 E
DIN6359 side clamp holders for DIN 1835 form E whistle notch shanks with HSK DIN69893 form A tapered shanks.

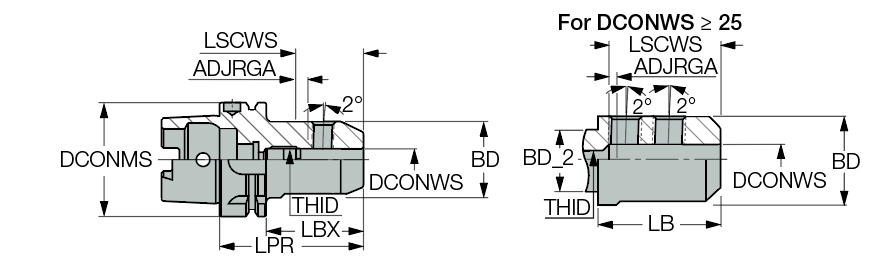

| Connection Size (CSI) | R8 | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Shank Size (SS) | 63 |
| Body Diameter (BD) | 48 mm | Tool Type | HSK |
| Protruding Length (LPR) | 100 mm | Body Material | Steel |
| Overall Length (OAL) | 132 mm | Connection Code Machine Side (CCMS) | HSK |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | DIN6359 side clamp holders for DIN 1835 form E whistle notch shanks with HSK DIN69893 form A tapered shanks. | Country of Origin | Israel |

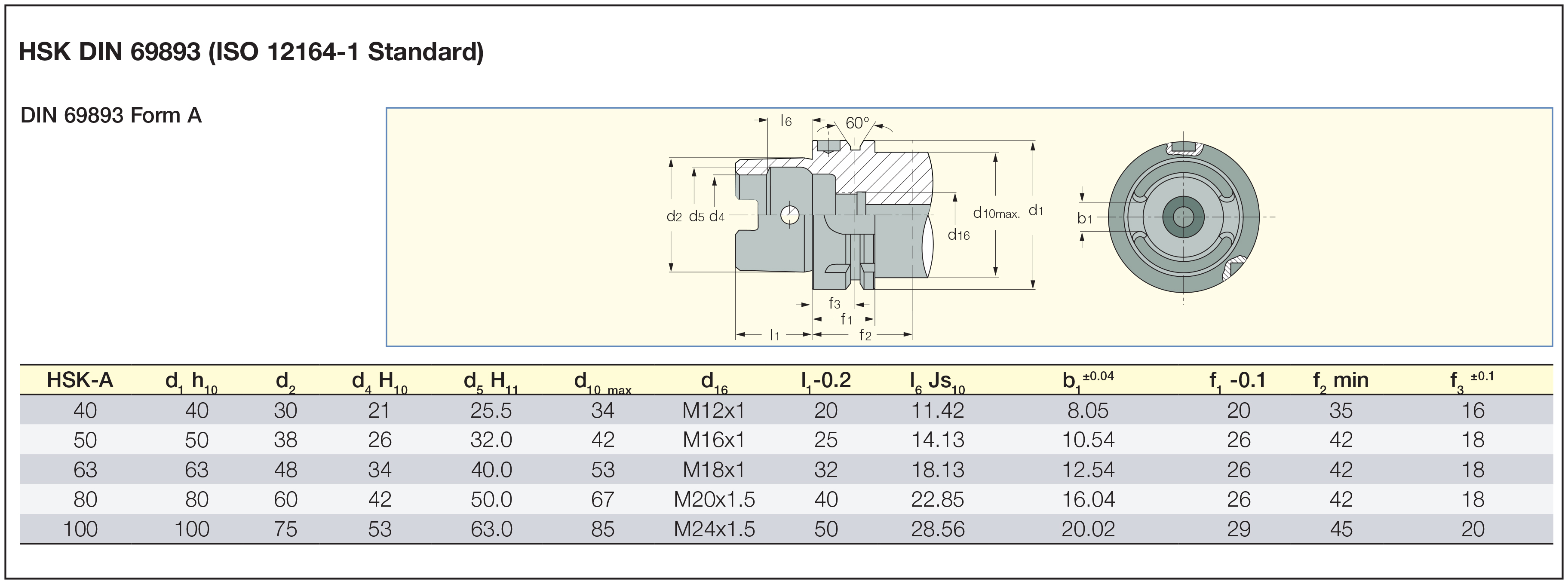

| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info. |
Shipping Info
Package Weight
3.558
