SCD 039-029-060 AP5 IC908
Solid carbide drills without coolant holes. Drilling depth 5xD.

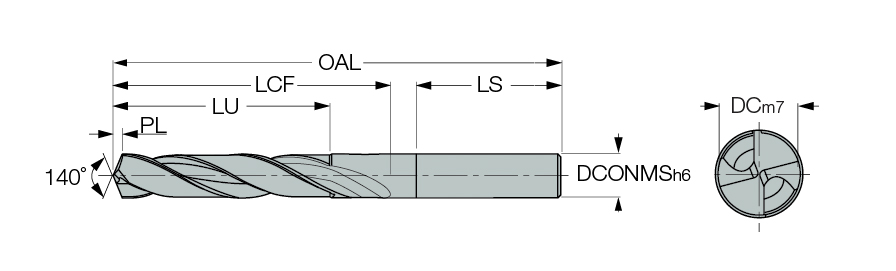

| Drill Bit Size / Cutting Diameter (DC) | 3.9 mm | Shape | Jobber Drill |
| Decimal Equivalent | 0.2638″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.9 mm | Tool Type | solid carbide Drills |
| Length Group | 5D | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Series/List # | 2464 |
| Application | | Drilling | | Usable Length (LU) | 29 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 36 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 74 mm |
| Point Angle (SIG) | 118 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 45 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round |
Product Features
| Family Description | Solid carbide drills without coolant holes. Drilling depth 5xD. | Country of Origin | Korea |
Shipping Info
Package Weight
0.049
