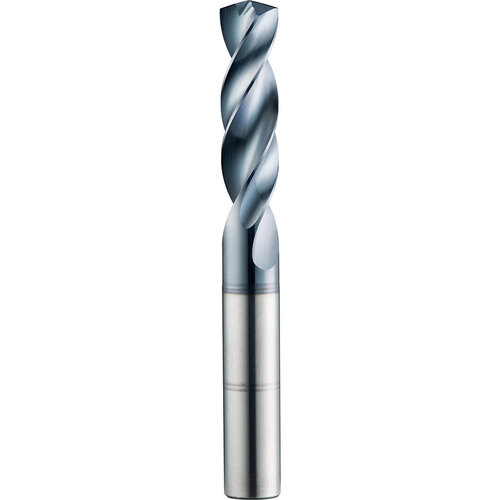

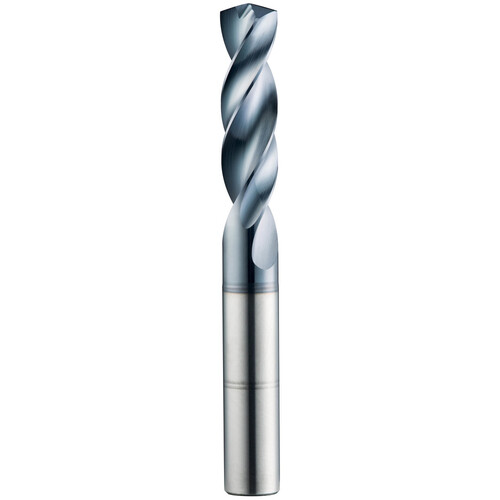

#47 Dia. × 1/8″ Shank × 35/64″ Flute Length × 2″ OAL, 5xD, 145°, TA, 2 Flute, External, Round Solid Carbide Drill
| Drill Bit Size / Cutting Diameter (DC) | #47 | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.0785″ | Length Below Shank | 1-1/4″ |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #47 | Flute Type | Spiral |
| Length Group | 5xD | Measurement Type | Wire Gauge |
| Coating | AlTiN | Series/List # | 135L |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 27/64″ |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 35/64″ |
| Point Angle (SIG) | 145 Degrees | Overall Length (OAL) | 2″ |
| Flute Helix Angle (FHA) | 32 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.014
