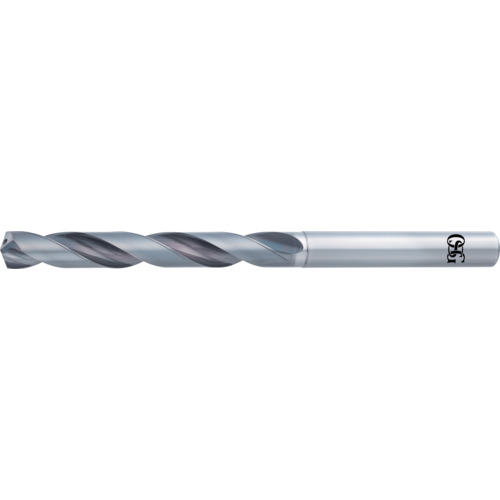

9/32 EXOCARB WDO-SUS-5D
SC Drill; 9/32″ Dia. × 5/16″ Shank Dia. × 118 mm OAL × 58 mm LCF ; 140 Degrees ; 5xD ; AlTiCrN ; Series 5210
| Drill Bit Size / Cutting Diameter (DC) | 9/32″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/32″ | Tool Type | Jobber Drill |
| Decimal Equivalent | 0.2813″ | Measurement Type | Inch |
| Length Group | 5xD | Series/List # | 5210 |
| Coating | AlTiCrN | Usable Length (LU) | 58 mm |
| Applicable Material | | Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 58 mm |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Overall Length (OAL) | 118 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 58 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Additional Fees and Notes
0
Package Length
4.70000
Package Width
.55000
Package Height
.45000
Package Weight
0.14
