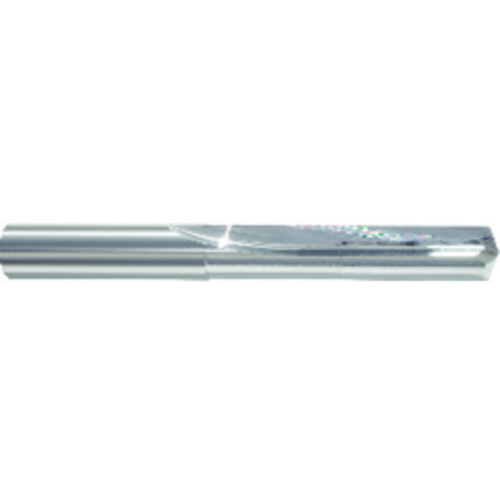

5376T 3/16″ ST/FL DRL SC

Item # MT1392722

UNSPSC: 23241606

Brand: Morse Cutting Tools

MFG#: 92722

UPC #: 01020136 | 68612592722 | 686125927226

Quantity Available

Drill Bit Size / Cutting Diameter (DC)

3/16″

Tool Type

Solid Carbide Drills

Drill Bit Size / Cutting Diameter (DC) - Inch

3/16″

Point Shape

Notch

Decimal Equivalent

0.1875″

Measurement Type

Inch

Length Group

Straight Flute

Series/List #

5376

Coating

TiAlN

Usable Length (LU)

‎1-1/8″

Connection Diameter Machine Side (DCONMS)

3/16″

Length Chip Flute (LCF)

‎1-1/8″

Coolant Supply Property (CSP)

External

Overall Length (OAL)

‎2-3/16″

Point Angle (SIG)

140 Degrees

Flute Count (NOF)

Flute Helix Angle (FHA)

0 Degrees

Cutting Direction (HAND)

Right Hand

Shank Type

Round

Body Material

Carbide

Cutting Edge Material

Carbide

Product Features

Remarks

‎Solid Carbide Straight Flute Drill• Recommended for hardened, high strength & abrasive materials• Produce close tolerance holes in stainles steels, alloy steels, aerospace alloys, exotic alloys, cryogenic alloys and other materials 40Rc hardness and higher• Solid Carbide offers excellent hardness, wear resistance and heat resistance for higher cutting speeds and longer tool life• High rigidity enchances hole accuracy and quality• 2 Flute - 140∫ Notch Point• Tolerance +0/-.0005• Titanium Aluminum Nitride (TiALN) Coating is an excellent all around coating that increases surface hardness, wear resistance, heat resistance, chip flow and resists chip welding.

Country of Origin

USA

Shipping Info

LocalField10

Package Length

3.12500

Package Width

.37500

Package Height

.37500

Package Weight

0.04
