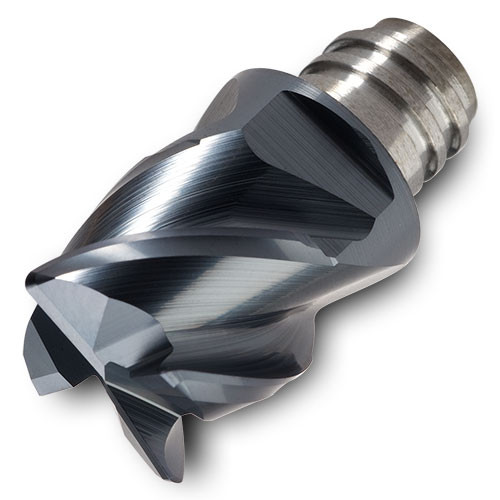

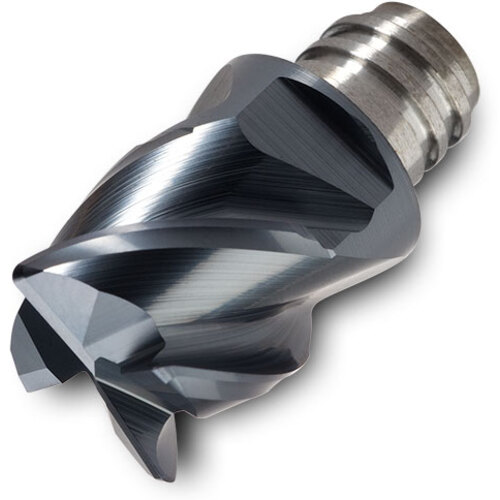

47D-7562TSRB06 IN2005
| Cutting Diameter (DC) | 3/4″ | Flute Helix Angle (FHA) | 30 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Overall Length (OAL) | 1.098″ |
| Flute Count (NOF) | 4 | Grade | IN2005 |
| Corner Radius (RE) | 0.063″ | Coating | TiAlN |
| Cutting Depth Maximum (CDX) | 0.7″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.62″ | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.72″ | Body Material | Steel |
| Functional Length (LF) | 1″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.063 R |
Product Features
| Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.476
