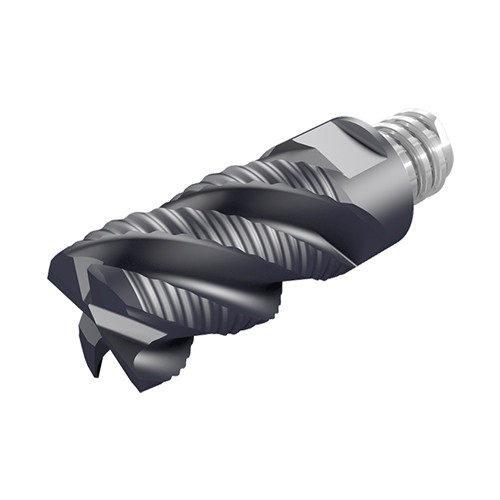

MM ERS200B30-6T12 IC908
Interchangeable solid carbide rough milling heads with 1.5xD flute lengths, for high metal removal applications.
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Coolant Supply Property (CSP) | External |

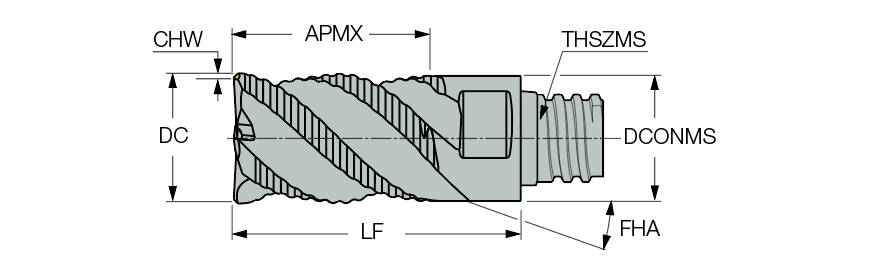

| Cutting Diameter (DC) | 20 mm | Corner Chamfer Width (CHW) | 0.4 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Maximum Feed per Tooth (fz(max)) | 0.11 mm/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 30 mm | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Connection Diameter Machine Side (DCONMS) | 18.45 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Functional Length (LF) | 41 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 47 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Grade | IC908 | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Coating | TiAlN |
Product Features
| Family Description | Interchangeable solid carbide rough milling heads with 1.5xD flute lengths, for high metal removal applications. | Country of Origin | Israel |

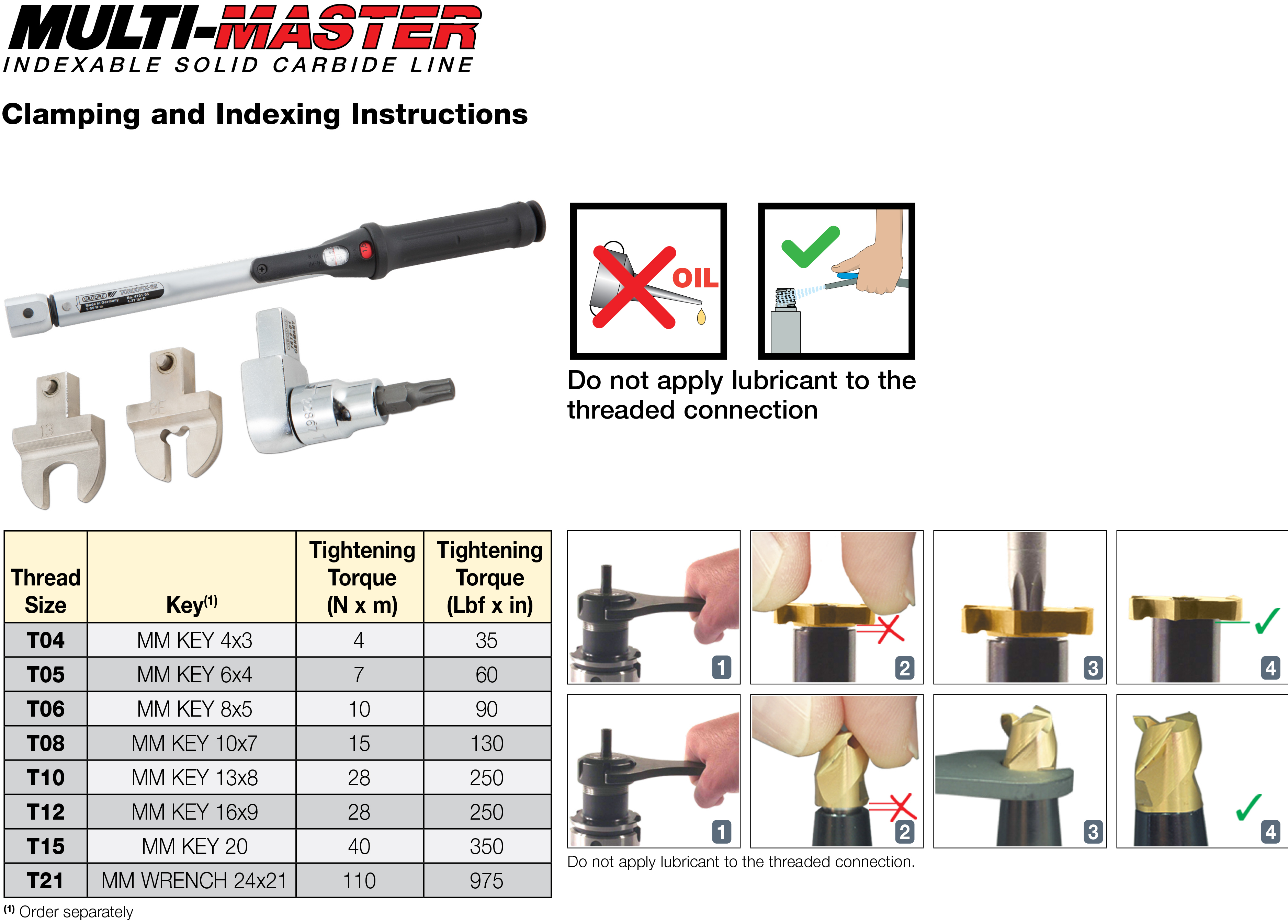

| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.395
Related Documentation
- Maximum depth of cut (APMX) while milling full slot from solid material is 1xDC - Maximum width of cut for milling shoulder with APMX=1.5xDC is 0.3xDC - Reinforced Weldon shanks are strongly recommended - In cases of unfavorable machining conditions, the cutting data should be decreased by 20%-30%
