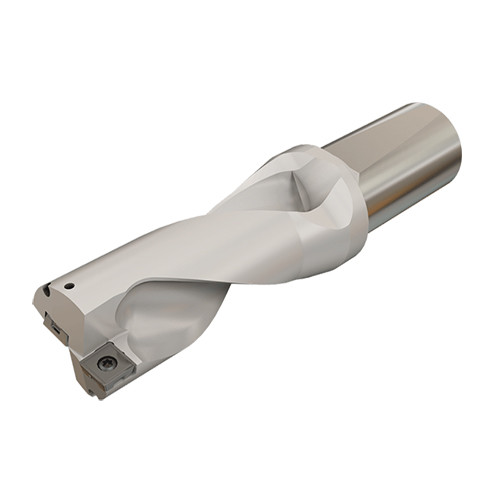

DR180-036-25-06-2D-N
DR-TWIST indexable square insert drills with coolant holes. Drilling depth 2xD.

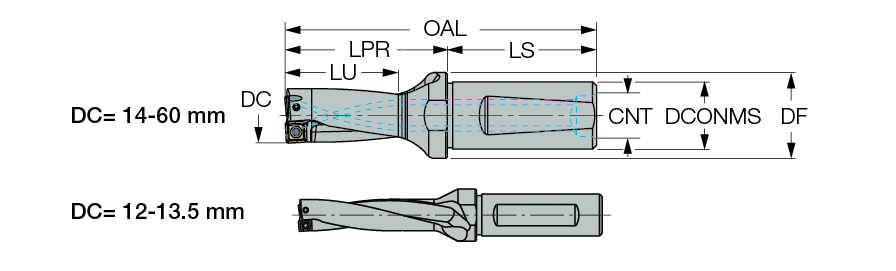

| Cutting Diameter (DC) | 18 mm | Overall Length (OAL) | 112 mm |
| Usable Length (LU) | 36 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Cutting Diameter Maximum (DCX) | 20.3 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Flange Diameter (DF) | 32 mm |
| Shank Size (SS) | 1″ | Measurement Type | Metric |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMX 06 |
| Protruding Length (LPR) | 56 mm | Body Material | Steel |
| Shank Length (LS) | 56 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 55.46 mm |
Product Features
| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 2xD. | Country of Origin | Israel |
| Remarks | Hole tolerance D+0.15/-0.05 in average conditions applied. It can be higher or lower according to machine and tooling conditions |
Shipping Info
Package Weight
0.725
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
