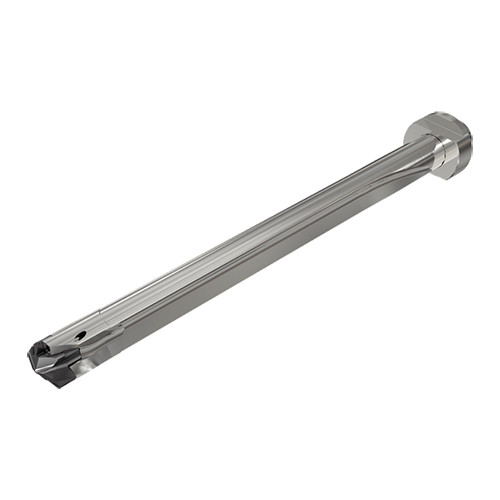

MNSNT 0531-1574-MF16X1
Gundrills carrying standard SUMOCHAM indexable inserts and a rear threaded connection which enables attaching different standard shank types.

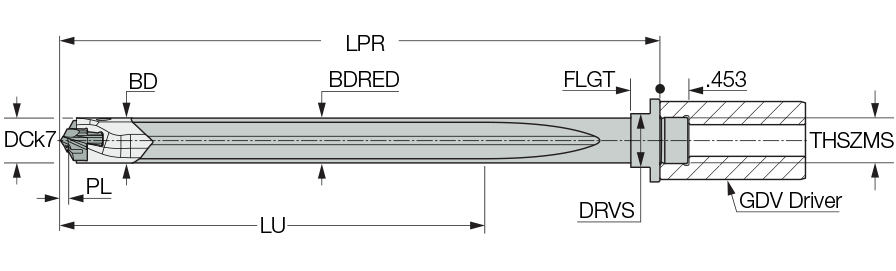

| Cutting Diameter (DC) | 0.531″ | Measurement Type | Inch |
| Usable Length (LU) | 15.748″ | Master Insert Identification (MIID) | HCP 135 |
| Application | | Drilling | Gundrills | | Point Length (PL) | 0.13818″ |
| Tool Type | Indexable Insert Drills | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 13.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.531″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.551″ | Decimal Equivalent | 0.531″ |
| Protruding Length (LPR) | 18.74″ | Connection Thread Nominal Size Machine Side (THSZMS) | MF16X1 |
| Coolant Supply Property (CSP) | Coolant Thru | Drive Size (DRVS) | 0.63″ |
| Cutting Item Count (CICT) | 1 |
Product Features
| Family Description | Gundrills carrying standard SUMOCHAM indexable inserts and a rear threaded connection which enables attaching different standard shank types. | Country of Origin | Israel |
Shipping Info
Package Weight
1.036
