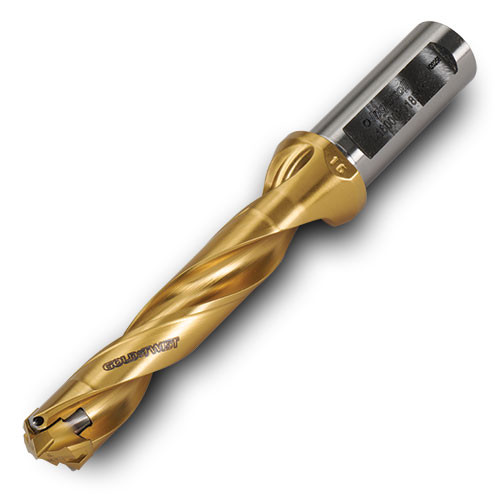

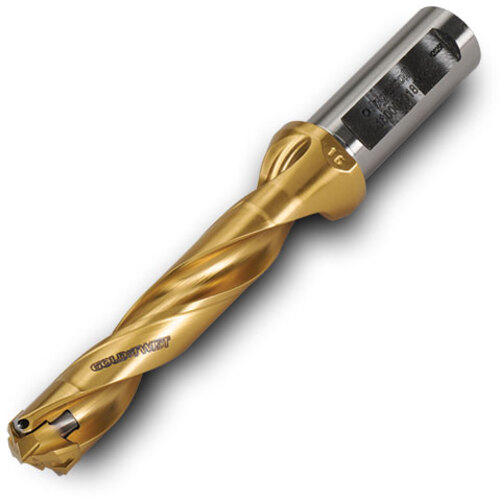

TD1200096JDR00
Coolant Through Holds +.002/-.000 on Hole Diameter

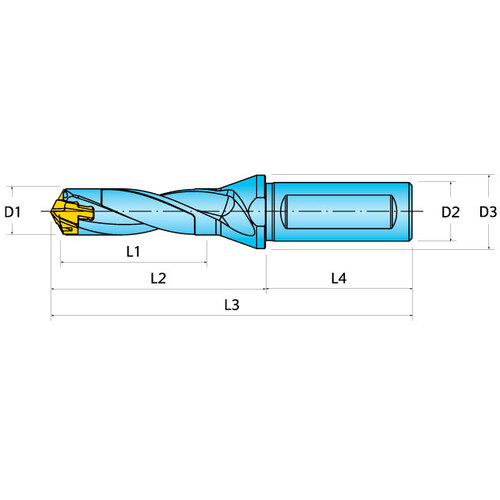

| Usable Length (LU) | 96 mm | Shank Length (LS) | 48 mm |
| Length Group | 8D | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drill Mill | Drilling | | Cutting Item Count (CICT) | 1 |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Insert Seat Size Code (SSC) | 12 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 12 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 12.4 mm | Body Material | Steel |
| Functional Length (LF) | 106 mm | Flange Diameter (DF) | 20 mm |
Product Features
| Family Description | Coolant Through Holds +.002/-.000 on Hole Diameter | Country of Origin | Usa |
Shipping Info
LocalField10
0
Package Weight
0.397
