DGTL 20B-3D25SH
Parting Off Holder; 120 mm OAL × 3 mm CW Min. × 3.18 mm CW Max. × 23.7 mm OAH ; Steel

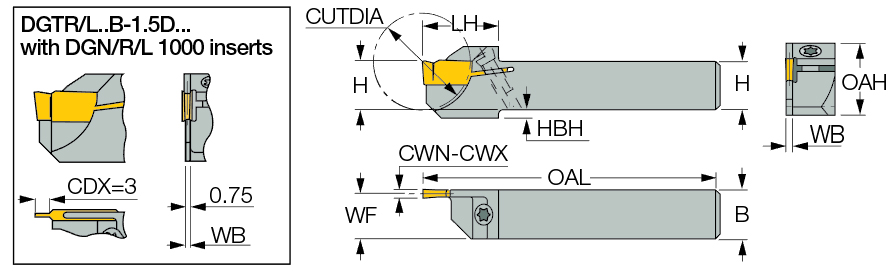

| Shank Height (H) | 20 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 20 mm | Shank Standard | Square |
| Body Width (WB) | 2.4 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 3 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 3.18 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 25.4 mm |
| Overall Length (OAL) | 120 mm | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 19.5 mm | Measurement Type | Metric |
| Overall Height (OAH) | 23.7 mm | Tool Assembly Length (LTA) | 29.5 mm |
| Cutting Position | External |
Product Features
| Family Description | Parting and grooving short head tools for CNC and Swiss automatics. | Country of Origin | Israel |
| Remarks | DGN/R/L 1 mm inserts can also be mounted into pocket sizes 2 and 3. For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, click on More Info |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.802
Related Documentation

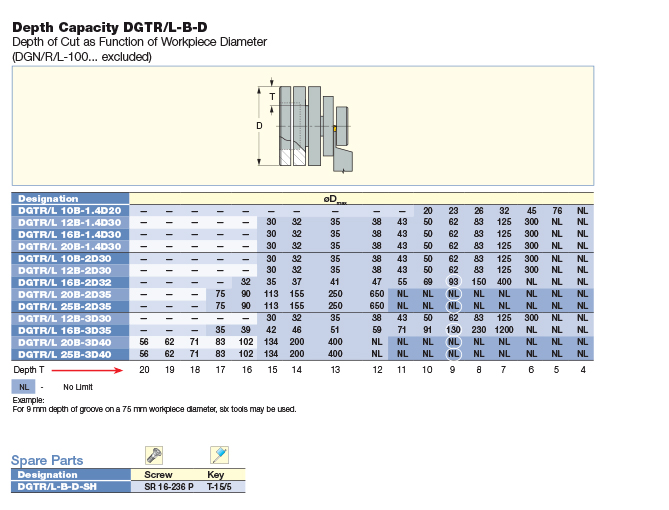

DG..1.0 insert can be mounted into pocket sizes 2 and 3. For DGN/R/L 1 mm inserts' depth capacity table and modification instructions for the holder pocket, see below.
