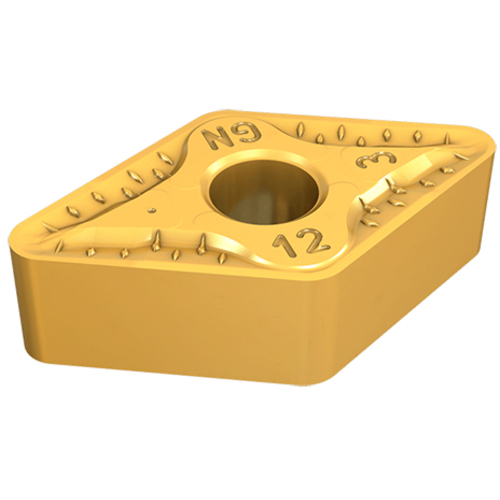

DNMG 442-GN IC8150
Turning Insert; 55 Rhombic ; 0.61″ Length × 1/2″ IC × 0.0315″ Corner Radius ; IC8150 ; Carbide ; TiCN+Al2O3+TiCN+TiN
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 0.039″ |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Style | DNMG | Min. Turning Feed (ft(min)) | 0.0071 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.015 ″/rev |
| Insert Size | 442 | Clearance Angle Major (AN) | 0 Degrees |

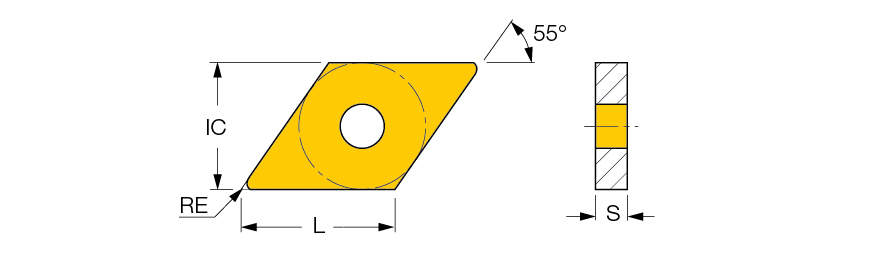

| Cutting Edge Length (L) | 0.61″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | GN |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 55° Rhombic |
| Coating | TiCN+Al2O3+TiCN+TiN | Series/List # | ISOI |
| Grade | IC8150 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Double-sided 55° rhombic inserts, secure cutting edge, for medium- and semi-roughing on steel and cast iron. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.039
