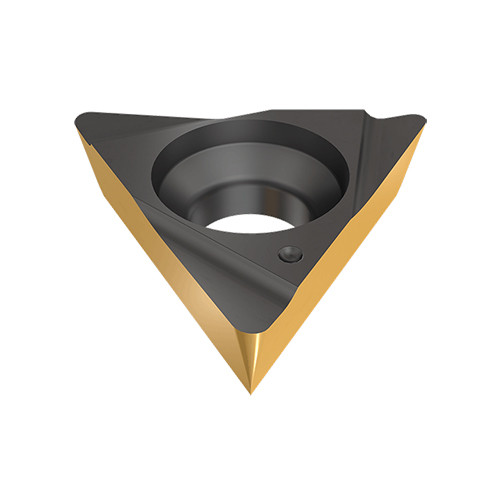

TPGX 730-L IC20N
Triangular 11° positive flank inserts with a ground chipformer. Used for finishing, provide excellent surface finish. Suitable for a wide range of materials.

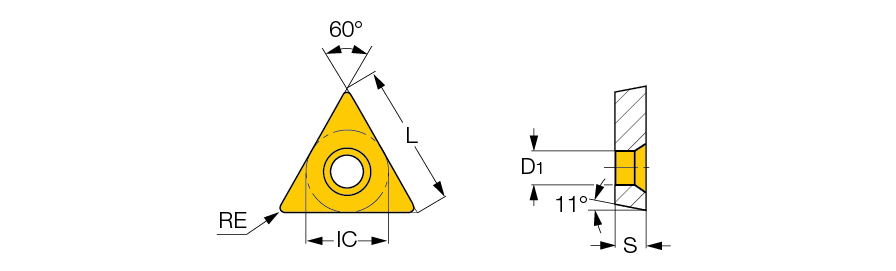

| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.039″ |
| Application | | Int. 60° Triangle 90° Approach | Int. 60° Triangle 91° Approach | | Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Style | TPGX | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Corner Radius (RE) | 0.0079″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Size | 090 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 0.378″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.094″ | Chip Breaker Type | X |
| Inscribed Circle Diameter (IC) | 0.219″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | 60° Triangle |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | IC20N | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.118″ | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Triangular 11° positive flank inserts with a ground chipformer. Used for finishing, provide excellent surface finish. Suitable for a wide range of materials. | Country of Origin | S.Korea |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
LocalField10
0
Package Length
4.00000
Package Width
1.57500
Package Height
.50000
Package Weight
0.003
