CCMT 3-2-14 IC3028
80° rhombic 7° positive flank inserts used for semi-finish and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used For a wide range of materials including soft and exotic alloys.
| Applicable Material | Steel|Stainless Steel|Hi-Temp Alloys| | Tool Type | Turn Positive Insert |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Min D.O.C. | 0.031″ |

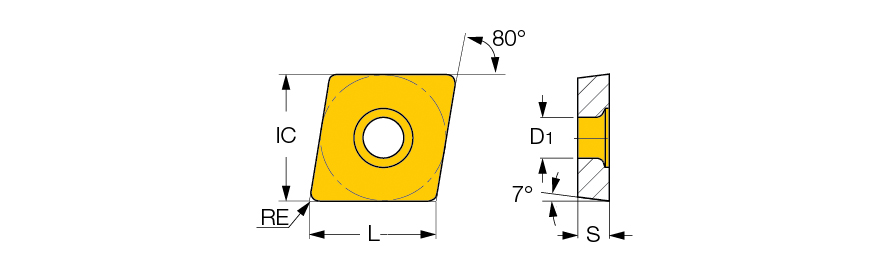

| Insert Style | CCMT | Depth of Cut Maximum (APMX) | 0.118″ |
| Corner Radius (RE) | 0.031″ | Max. Turning Feed (ft(max)) | 0.0118 inch/rev |
| Insert Size | 3-2 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 0.382″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | TiCN | Series/List # | ISOI |
| Grade | IC3028 | Model No | 8866423 |
| Fixing Hole Diameter (D1) | 0.173″ |
Product Features
| Family Description | 80° rhombic 7° positive flank inserts used for semi-finish and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used For a wide range of materials including soft and exotic alloys. | Country of Origin | IL |
| Remarks | For dimensions and tolerances, Click on "More Info" |
Shipping Info
Package Weight
.0077
