DNMG 442 ZM T9135
Turning Insert; 60 Triangle ; 0.61″ Length × 1/2″ IC × 0.031″ Corner Radius ; T9135 ; Carbide ; TiCN+Al2O3+TiN

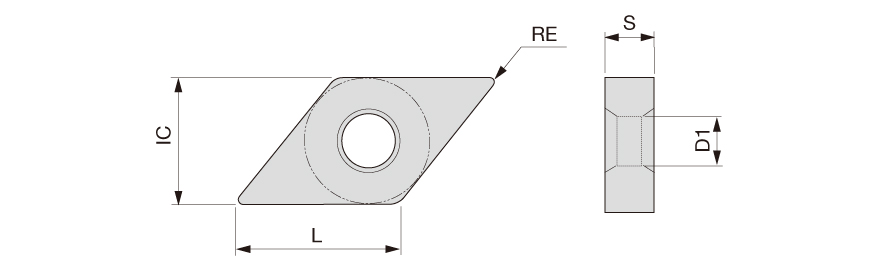

| Applicable Material | Steel | | Min D.O.C. | 0.0275″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Insert Style | DNMG | Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Corner Radius (RE) | 0.031″ | Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Insert Size | 442 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 0.61″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | ZM |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Shape | 60° Triangle |
| Grade | T9135 | Series/List # | DNMG 442-ZM |
| Fixing Hole Diameter (D1) | 0.203″ | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Negative relief ang., M class, 55deg rhombic insert, for finishing to medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.038
