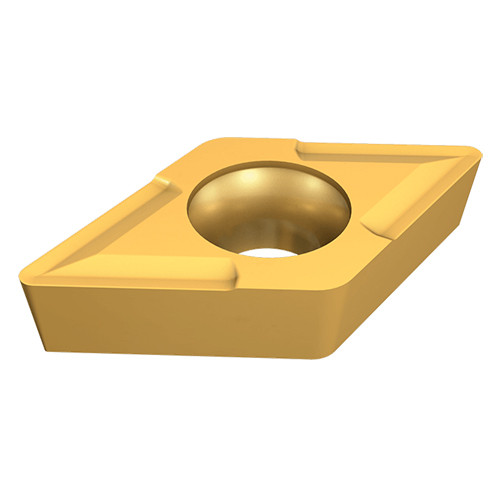

DCMT 3-0 IC20N
55° rhombic inserts with a 7° positive clearance for finishing applications.
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.02″ |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Style | DCMT | Min. Turning Feed (ft(min)) | 0.0031 ″/rev |

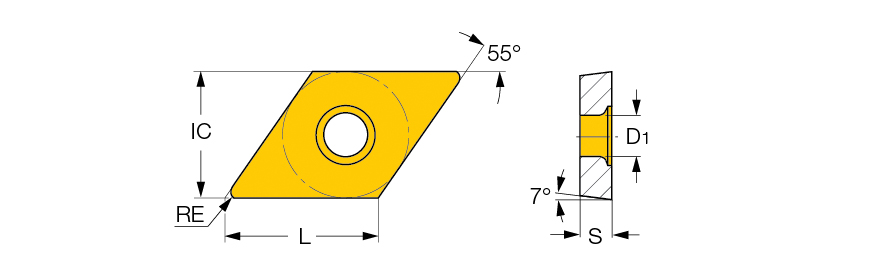

| Corner Radius (RE) | 0.0079″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Size | 11T | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.457″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Chip Breaker Type | 14 |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | 55° Rhombic |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | IC20N | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | 55° rhombic inserts with a 7° positive clearance for finishing applications. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, Click on More Info Right-hand inserts for right-hand external tools and for left-hand internal tools. |
Shipping Info
LocalField10
0
Package Weight
0.072
