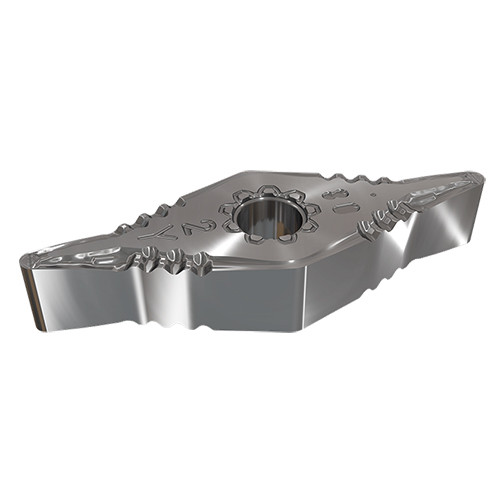

YNMG 331-F3P IC8250

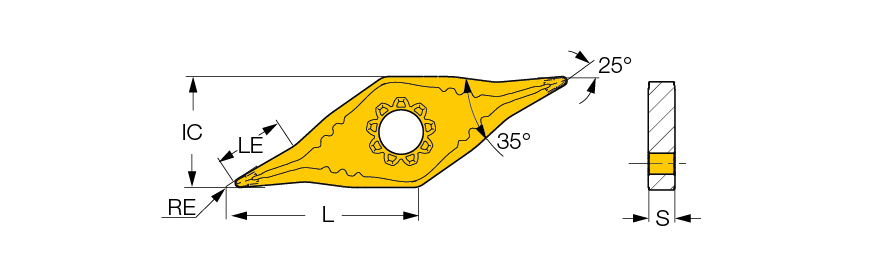

Double-sided 25° corner inserts for internal and external deep and narrow profiling and undercutting
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.016″ |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | YNMG | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.0047 ″/rev |
| Insert Size | 160 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.654″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | F3P |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Y |
| Coating | TiCN+Al2O3+TiN | Series/List # | ISOI |
| Grade | IC8250 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Double-sided 25° corner inserts for internal and external deep and narrow profiling and undercutting | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Length
1.17500
Package Width
.38600
Package Height
.19000
Package Weight
0.024
