SCMT 32.52 PM T9125
Positive 7deg relief ang., M class, square insert, for medium cutting

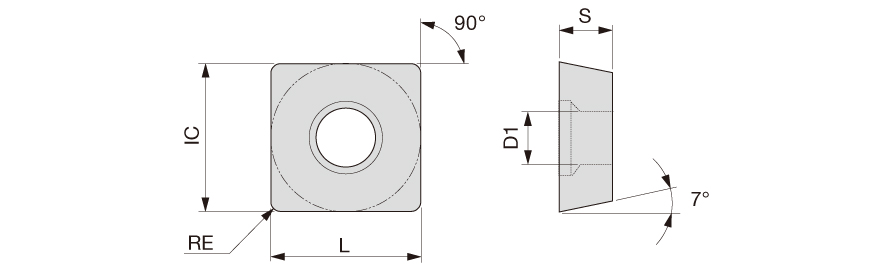

| Applicable Material | Steel | | Min D.O.C. | 0.0393″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1181″ |
| Insert Style | SCMT | Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Corner Radius (RE) | 0.031″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Size | 32.52 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 3/8″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | PM |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Shape | 60° Triangle |
| Grade | T9125 | Series/List # | SCMT 32.52-PM |
| Fixing Hole Diameter (D1) | 0.173″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
Product Features
| Family Description | Positive 7deg relief ang., M class, square insert, for medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.101
