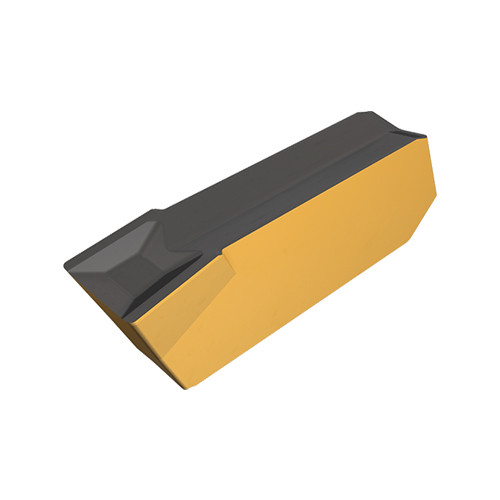

GIMF 406 IC20
Utility single-ended grooving and turning inserts with F/Y-type chipformers. Used for deep machining at low-to-medium feeds.

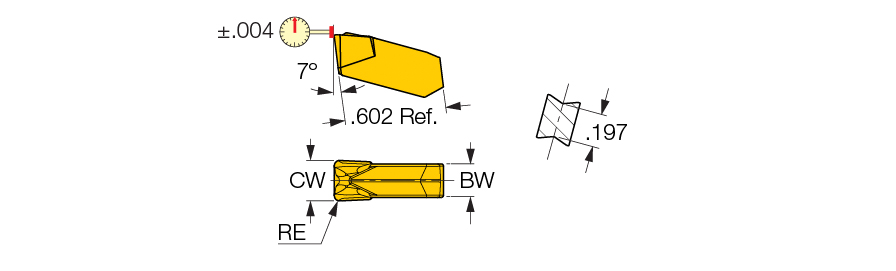

| Cutting Width (CW) | 0.157″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.024″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | FT |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.602″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Minimum Bore Diameter (DMIN) | 2.756″ | Measurement Type | Inch |
| Feed | 0.0098 inch/rev | Tool Type | Groove-Turn Utility Inserts |
| Coating | Uncoated | Threads per Inch (TPI) | 8 |
| Grade | IC20 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Groove & Turn | Int. Grooving | |
Product Features
| Family Description | Utility single-ended grooving and turning inserts with F/Y-type chipformers. Used for deep machining at low-to-medium feeds. | Country of Origin | Israel |
| Remarks | DMIN for internal applications = 2.76 |
Shipping Info
LocalField10
0
Package Length
3.87500
Package Width
1.62500
Package Height
.43750
Package Weight
0.012
