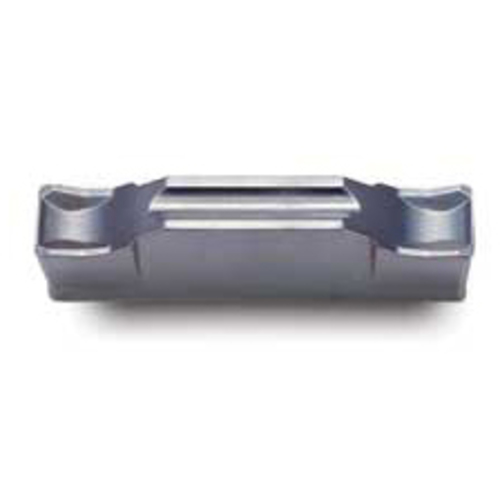

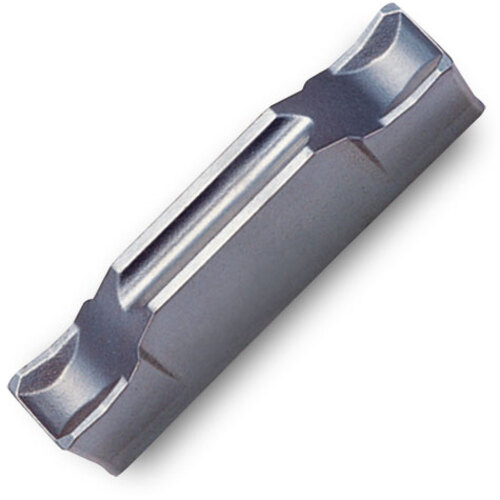

TDC3 TT9080

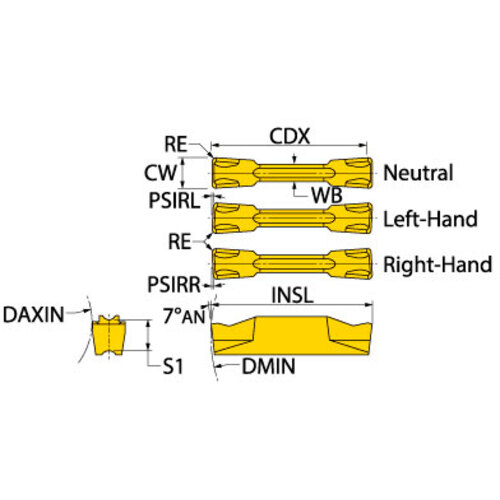

| Cutting Width (CW) | 0.118″ | Max. Grooving Feed (fg(max)) | 0.0098″ |
| Corner Radius (RE) | 0.008″ | Min. Grooving Feed (fg(min)) | 0.0028″ |
| Insert Thickness (S) | 0.094″ | Insert Size | 3 |
| Insert Length (INSL) | 0.79″ | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 0.748″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+TiN | Clearance Angle Major (AN) | 7 Degrees |
| Grade | TT9080 | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Insert Seat Size Code (SSC) | 3 |
| Application | | Ext. Grooving | Parting | |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Additional Fees and Notes
0
Package Length
.78000
Package Width
.21000
Package Height
.12000
Package Weight
0.02
