PENTA 24N100PF010 IC908

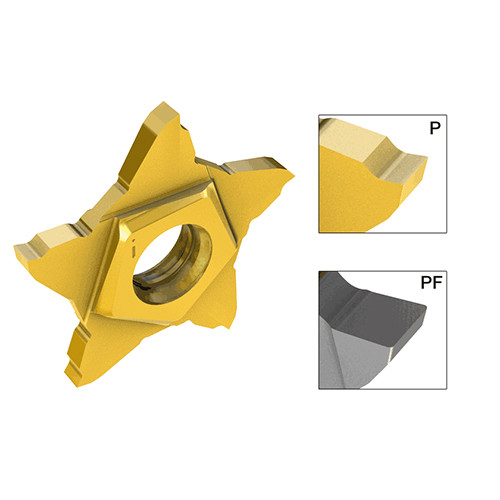

Parting and precision grooving inserts for soft and small parts. High positive rake, P-type has more positive rake, smaller radii and no edge honing vs. the PF-type. Most economical system with 5 cutting edges.

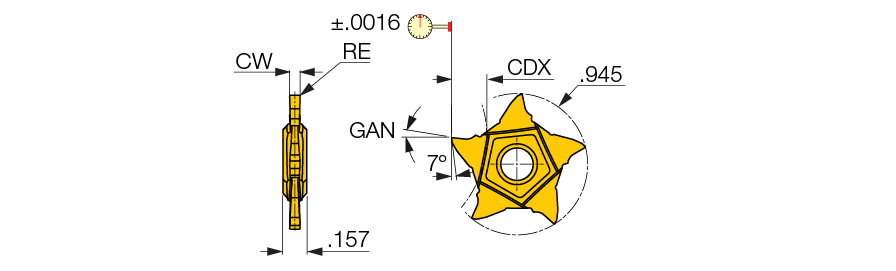

| Cutting Width (CW) | 0.039″ | Max. Grooving Feed (fg(max)) | 0.0024 ″/rev |
| Corner Radius (RE) | 0.0039″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008″ | Insert Rake Angle (GAN) | 6 Degrees |
| Cutting Depth Maximum (CDX) | 0.157″ | Chip Breaker Type | PF |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN | Angle | 12 Degrees |
| Grade | IC908 | Measurement Type | Inch |
| Shape | 108° Pentagonal | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Insert Width (W1) | 0.157″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Parting and precision grooving inserts for soft and small parts. High positive rake, P-type has more positive rake, smaller radii and no edge honing vs. the PF-type. Most economical system with 5 cutting edges. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info. |
Shipping Info
Package Weight
0.021
