MT TISC 826 10ABUT AC22
External & Internal Single-Sided American Buttress Thread Milling Inserts

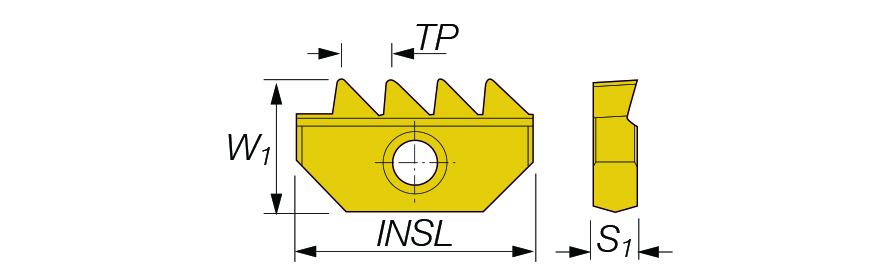

| Thread Pitch (TP) | 2.54 mm | Grade | AC22 |
| Threads per Inch (TPI) | 10 | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.827″ | Coating | TiAlN |
| Insert Width (W1) | 0.472″ | Measurement Type | Inch |
| Insert Thickness Total (S1) | 0.14″ | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | ABUT |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | External & Internal Single-Sided American Buttress Thread Milling Inserts | Country of Origin | Israel |
Shipping Info
Package Weight
0.044
