HSK A63 EM8X65 CX

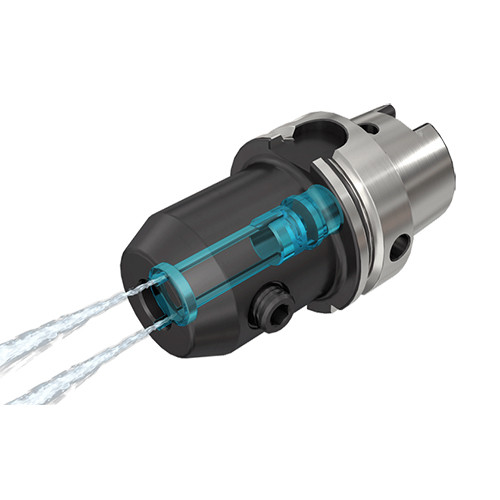

DIN6359 side clamp holders for DIN 1835 form B Weldon shanks with HSK DIN69893 form A tapered shanks and jet coolant grooves along the shank bore

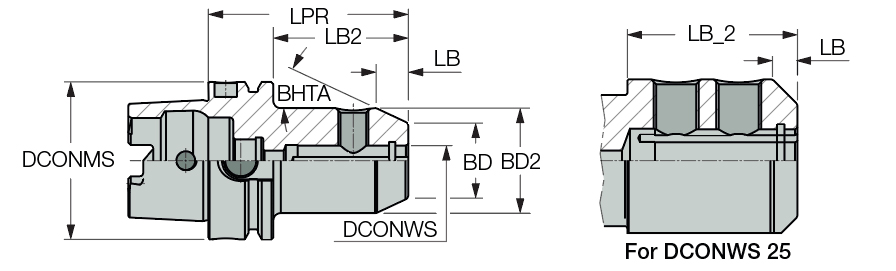

| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Shank Size (SS) | 63 |
| Body Diameter (BD) | 20 mm | Tool Type | HSK |
| Protruding Length (LPR) | 65 mm | Body Material | Steel |
| Measurement Type | Metric | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | DIN6359 side clamp holders for DIN 1835 form B Weldon shanks with HSK DIN69893 form A tapered shanks and jet coolant grooves along the shank bore | Country of Origin | China |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. |
Shipping Info
Package Weight
1.887
