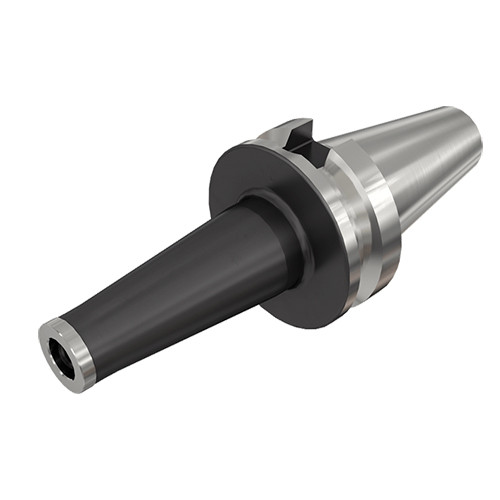

BT50ODP12X144
TungFlex modular tooling system with BT shank

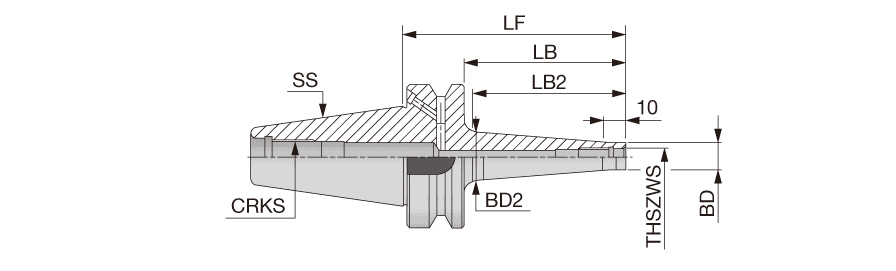

| Shank Size (SS) | 50. | Tool Type | BT |
| Body Length (LB) | 4.173″ | Nose Diameter | 9.677″ |
| Body Diameter (BD) | 0.906″ | Overall Length (OAL) | 5.669″ |
| Application | | Tapered shape interface | | Measurement Type | Inch |
| Connection Retention Knob Thread Size (CRKS) | M24 | Body Material | Steel |
| Body Length_2 (LB_2) | 3.937″ |
Product Features
| Family Description | TungFlex modular tooling system with BT shank | Country of Origin | ITALY |
Shipping Info
Package Weight
0.000
