ST20X200SRK5

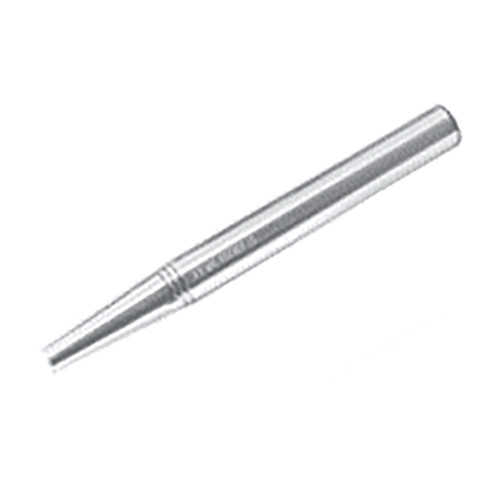

TungShrink thermal shrinking holder for carbide shank with Straight shank

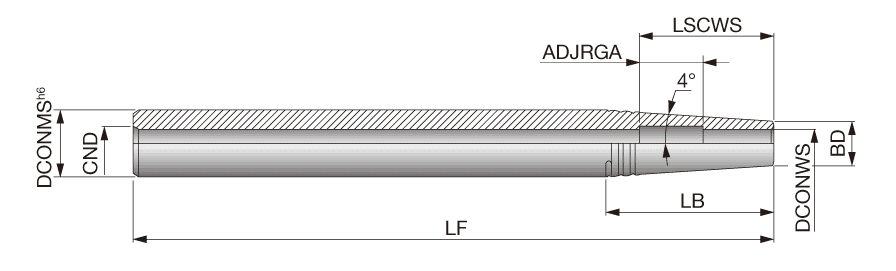

| Connection Diameter Machine Side (DCONMS) | 20 mm | Shank Type | Round |
| Connection Diameter Workpiece Side (DCONWS) | 5 mm | Application | | Straight shape | |
| Body Length (LB) | 71.5 mm | Clamping Length Workpiece Side (LSCWS) | 150 mm |
| Body Diameter (BD) | 10 mm | Measurement Type | Metric |
| Body Taper End Diameter (BTED) | 200 mm | Tool Type | Cylindrical Shanks |
| Overall Length (OAL) | 200 mm | Body Material | Steel |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide shank with Straight shank | Country of Origin | ISRAEL |
| Remarks | Applicable for 10 MPa pressure coolant. |
