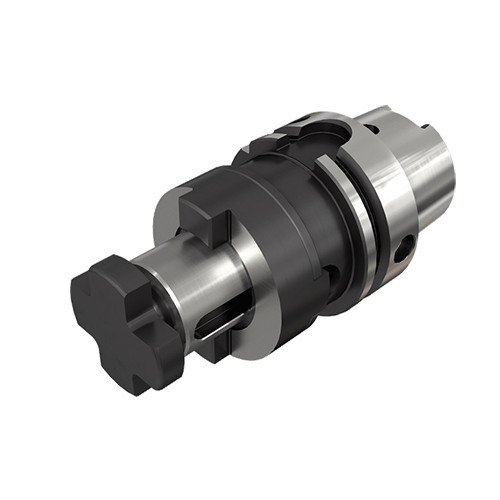

HSKA63SEMC22X60
Shell Mill Holder; 63 mm Shank Dia. ; 22 mm Hole Dia. ; 40 mm Body Dia. ; 60 mm OAL ; 34 mm Body Length ; HSK A 63 Shank Size

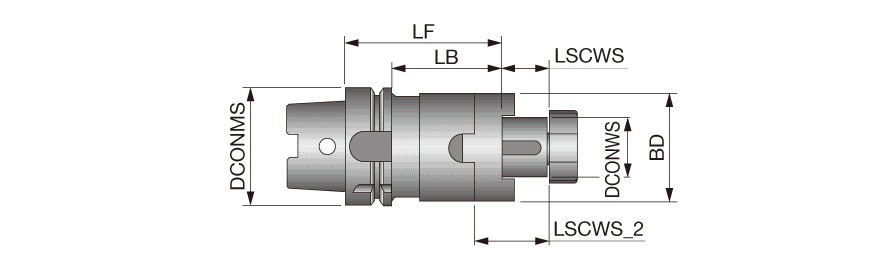

| Connection Diameter Machine Side (DCONMS) | 63 mm | Thread Size | FDA |
| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Application | | Face contact interface | |
| Shank Size (SS) | HSK A 63 | Tool Type | HSK |
| Body Length (LB) | 34 mm | Measurement Type | Metric |
| Body Diameter (BD) | 40 mm | Body Material | Steel |
| Overall Length (OAL) | 60 mm |
Product Features
| Family Description | Combination holder with HSK-A shank | Country of Origin | ITALY |
Shipping Info
Additional Fees and Notes
0
Package Weight
2.388
