Q0191057N5R01

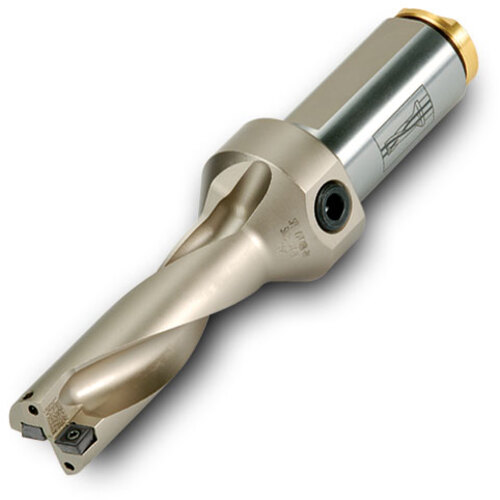

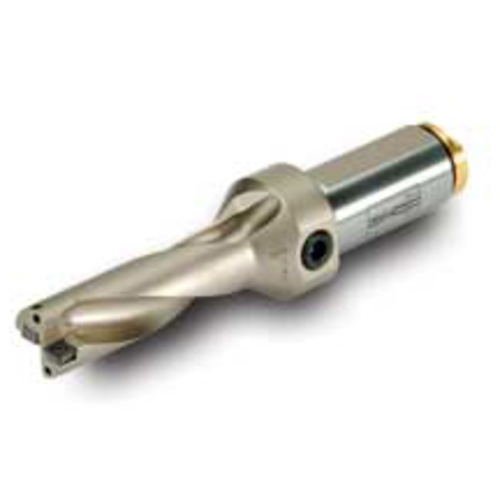

Indexable Insert Drill; 3/4″ Dia. × 2-1/4″ LU × 1″ Shank Dia. × 5.59″ OAL ; Steel

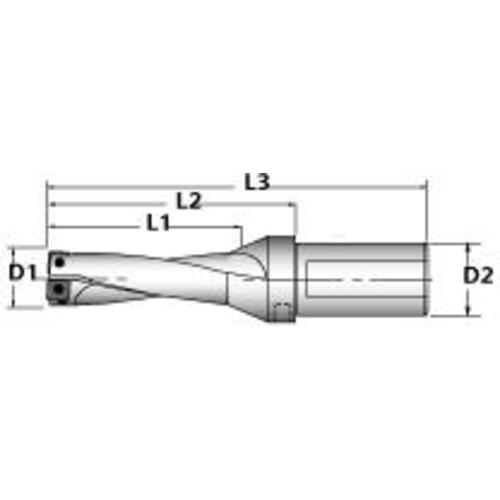

| Cutting Diameter (DC) | 3/4″ | Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 2-1/4″ | Cutting Diameter Maximum (DCX) | 0.79″ |
| Application | | Drill Mill | Drilling | | Flange Diameter (DF) | 1.26″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Shank Length (LS) | 2.205″ | Effective No. of Teeth | 1 |
| Functional Length (LF) | 3.39″ | Body Material | Steel |
| Overall Length (OAL) | 5.59″ | Decimal Equivalent | 0.75″ |
Product Features
| Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.926
