TAN07R200M47.6-18

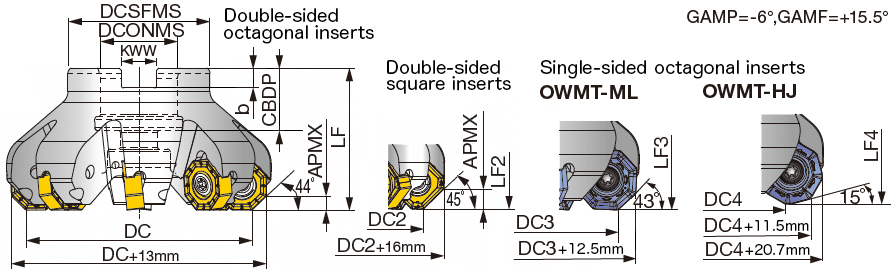

45deg screw clamp type face mills with double sided octagonal or square inserts.
| Cutting Diameter (DC/DCX) | 213 mm | Master Insert Identification (MIID) | ONMU0705ANPN-MJ |
| Cutting Diameter (DC) | 200 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 213 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 18 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 7.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 47.625 mm | Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm | Tool Type | 45 Facemills |
Product Features
| Family Description | 45deg screw clamp type face mills with double sided octagonal or square inserts. | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
15.565
