EPAV06M012C12.0R02L

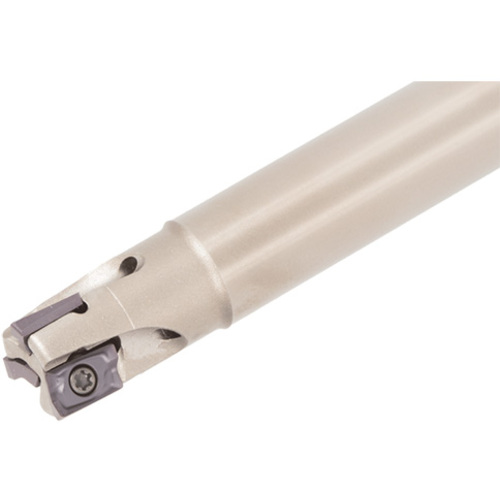

Indexable End Mill; 12 mm Dia. × 6 mm LOC × 12 mm Shank Dia. × 120 mm OAL ; Round Shank ; 90 Degrees

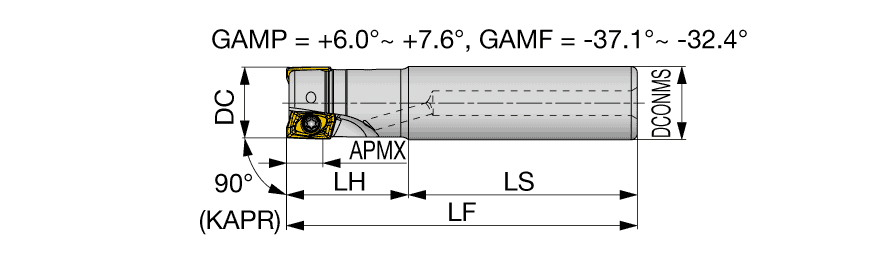

| Cutting Diameter (DC/DCX) | 12 mm | Master Insert Identification (MIID) | AVGT060304PBER-MJ |
| Cutting Diameter (DC) | 12 mm | Head Length (LH) | 35 mm |
| Cutting Item Count (CICT) | 2 | Functional Length (LF) | 120 mm |
| Depth of Cut Maximum (APMX) | 6 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 120 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 85 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Diameter Maximum (DCX) | 12 mm |
Product Features
| Family Description | Square shoulder endmill, shank type, with screw clamp system | Country of Origin | JAPAN |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.335
