LPTC16M063B27.0L061R03

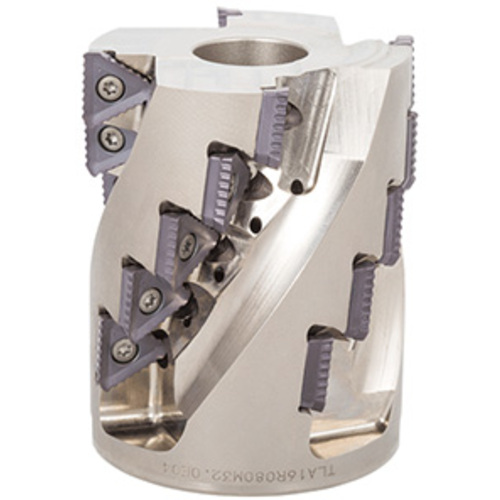

Square Shoulder milling cutters for Roughing with shred insert; Bore Type
| Application | | Shoulder Milling | | Overall Length (OAL) | 85 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 | Master Insert Identification (MIID) | TC*T16... |
| Cutting Item Count (CICT) | 12 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 61 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 63 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Tool Type | 90 Extended flute shell mill |
Product Features
| Family Description | Square Shoulder milling cutters for Roughing with shred insert; Bore Type | Country of Origin | JAPAN |
| Remarks | Coolant can be supplied from the end face of the centering location bore in the arbor. However, cannot be supplied from the center bolt. |
Shipping Info
Package Weight
0.304
