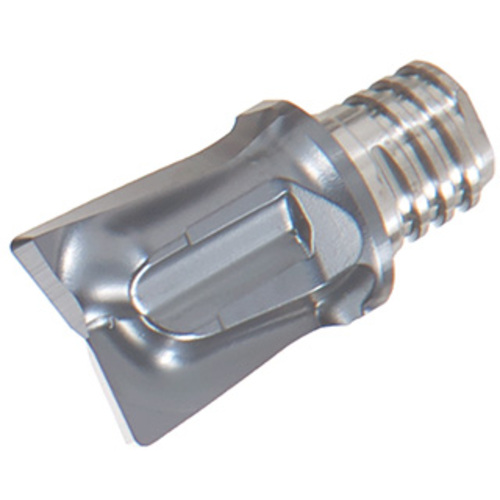

VGC120L10.0R04-02S08 AH725
Counterboring, 2 flutes, for counterboring (can be used for milling)
| Application | | Multi Functional tools | | Flute Helix Angle (FHA) | 10 Degrees |
| Cutting Diameter (DC) | 12 mm | Grade | AH725 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Corner Radius (RE) | 0.4 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 10 mm | Tool Type | Solid carbide center cutting endmills 90 |
| Functional Length (LF) | 14.2 mm | Body Material | Carbide |
Product Features
| Family Description | Counterboring, 2 flutes, for counterboring (can be used for milling) | Country of Origin | ISRAEL |
| Remarks | Can drill with step feed Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.108
