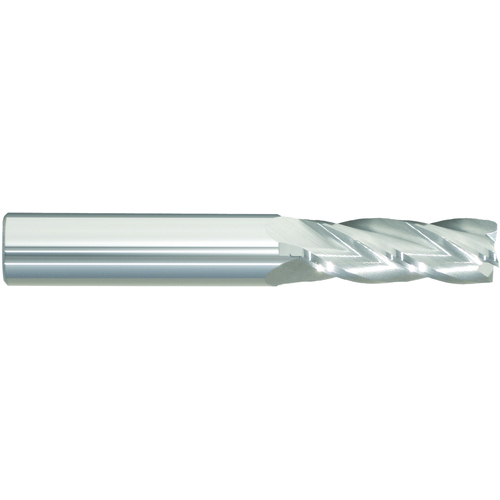

1″ × 1″ × 3″ × 6″ 4 Flute Single End Carbide Finishing Center Cutting End Mill-Uncoated Series/List #5951
SQ End Mill; 1″ Dia. × 3″ LOC × 1″ Shank Dia. × 6″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 5943
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 1″ | Usable Length (LU) | 3″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 3″ | Tool Type | Single End |
| Overall Length (OAL) | 6″ | Length Group | Extra Long |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 1″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5943 |
| End Shape | Square | Trade Name | SOLID MASTER |
Product Features
| Remarks | •Solid Carbide 4-Flute Single End Mills •Micrograin Extra Long Length | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
6.77170
Package Width
1.41730
Package Height
1.41730
Package Weight
2.272
