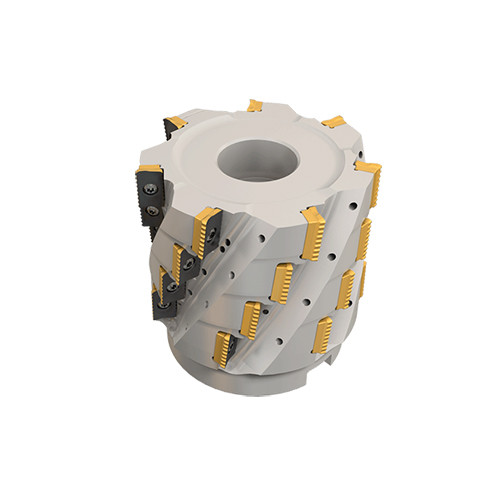

P290 SM D080-06-71-32-18
Extended flute shell mills carrying 12 and 18 mm long edged inserts.

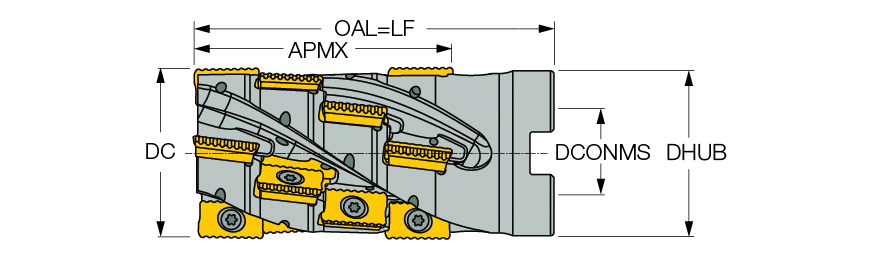

| Application | | Rampdown | Shouldering | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 24 | Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW |
| Depth of Cut Maximum (APMX) | 71 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 80 mm | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 74 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Overall Length (OAL) | 100 mm | Body Material | Steel |
| Cutting Length | 71 mm | Tool Type | 90° Extended flute shell mill |
Product Features
| Family Description | Extended flute shell mills carrying 12 and 18 mm long edged inserts. | Country of Origin | China |
| Remarks | Note: recommended ae up to 0.2xDC |
Shipping Info
Package Weight
6.310
