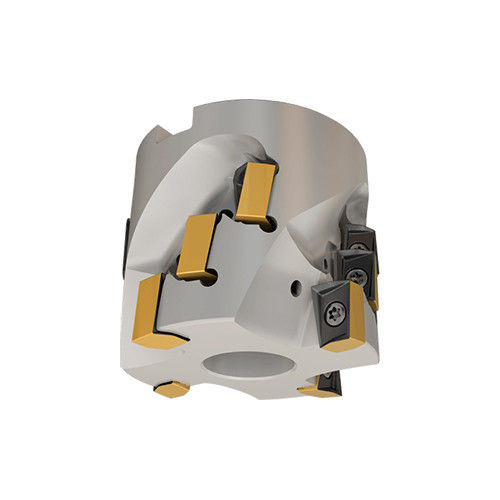

H490 SM D063-60-3-27-17C
Extended flute shell mills carrying H490 ANKX 17.. double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 LINE).
| Application | | Shouldering | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 12 | Master Insert Identification (MIID) | H490 ANKX 170604PNTR |

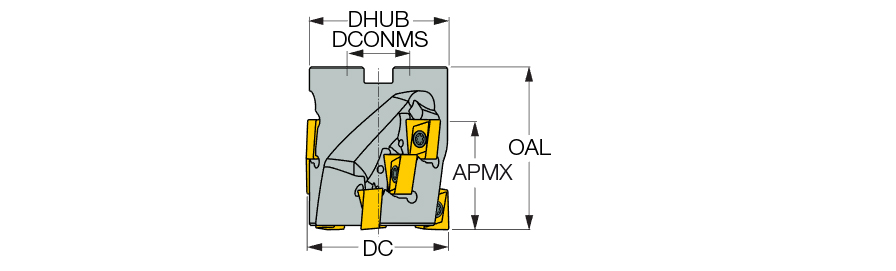

| Depth of Cut Maximum (APMX) | 58.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 63 mm | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 59.4 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Overall Length (OAL) | 85 mm | Body Material | Steel |
| Cutting Length | 58.5 mm | Tool Type | 90° Extended flute shell mill |
Product Features
| Family Description | Extended flute shell mills carrying H490 ANKX 17.. double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 LINE). | Country of Origin | Israel |
Shipping Info
Package Weight
3.201
